- Lovejoy® 69790497932
69790497932

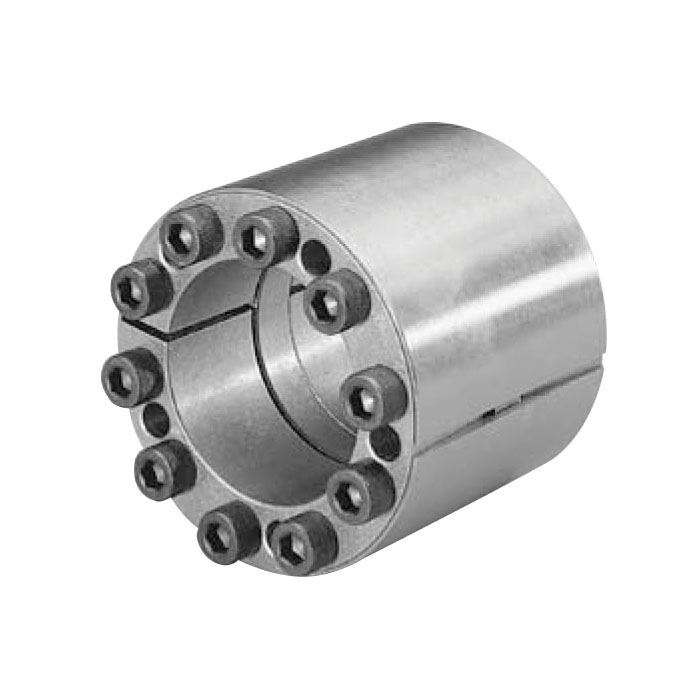

Lovejoy® 69790497932 SLD 2600 Series Self-Centering Internal Shaft Locking Device, 30 mm Dia Bore, 55 mm OD, 1.181 in Dia Hub, 1.614 in OAL, Metallic Collar/Steel Screw
- CP#:
- Item#: SLD 2600 MM 30X55
- Mfr#: 69790497932
- UPC: 697904979329
- Versus traditional keyed connection
- No Backlash due to fit tolerances
- No impact effect from reversing loads
- Ability to adjust axial position and angular timing
- No fretting corrosion due to movement at the fit interface
- Versus traditional interference fits
- Easier and quicker to install
- Higher contact pressures can transmit greater torques
- Easy and quick to remove without damaging the shaft or hub even after years of service
- Eliminate cost of machining keyways or splines
- Reduce the shaft stress by removing keyways or splines
- Eliminating keyways often allows the use of a smaller diameter shaft
- Can place anywhere on shaft and allows for easy angular timing
- Easy removal without damaging the shaft or hub means easier maintenance for your customer
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® Internal Shaft Locking Device, Self-Centering, Series: SLD 2600 Series, 30 mm Bore, 55 mm OD, 1.181 in Diameter Hub, 851 ft-lb Transmissible Torque, 28094 psi Shaft Contact Pressure, 14576 psi Hub Contact, M6 Screw, 1.614 in Overall Length, Metallic Collar/Steel Screw, Silver
SPECIFICATIONS
| Series | : | SLD 2600 Series |
| Bore Diameter | : | 30 mm |
| Outside Diameter | : | 55 mm |
| Overall Length | : | 1.614 in |
| Material | : | Metallic Collar/Steel Screw |
| Finish | : | Silver |
| Hub Contact Pressure | : | 14576 psi |
| Type | : | Self-Centering |
| Shaft Contact Pressure | : | 28094 psi |
| Screw Size | : | M6 |
| Transmissible Torque | : | 851 ft-lb |
| Hub Diameter | : | 1.181 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790497930_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790497932_Specification_Sheet.pdf
