- Lovejoy® 69790400174
69790400174

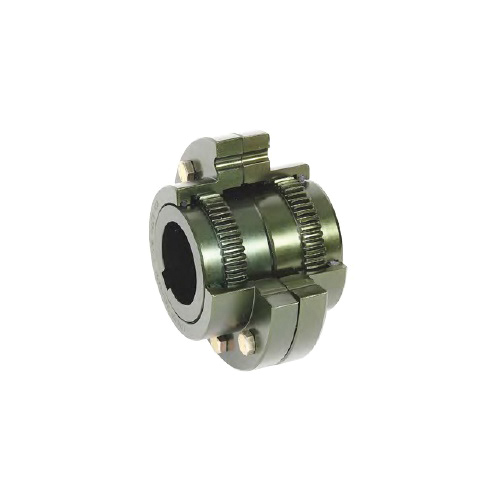

Lovejoy® 69790400174 Type F Exposed Bolt Flanged Flexible Coupling Sleeve With O-Ring, 2 in Coupling, 7 in OD, 1045 Steel, Metallic
- CP#:
- Item#: F2 E SLEEVE
- Mfr#: 69790400174
- UPC: 697904001747
- Patented Vari-Crown® tooth form for long life
- Precision cut 20 deg pressure angle gear teeth with minimum backlash
- Heat treated bolts for greater strength
- Corrosion-resistant bolts and nuts for ease of maintenance
- Provides parallel, angular misalignment and end float
- Flex Half coupling interchangeable with industry standards
- Exposed bolts standard on all sizes, shrouded available by request up to size 6
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

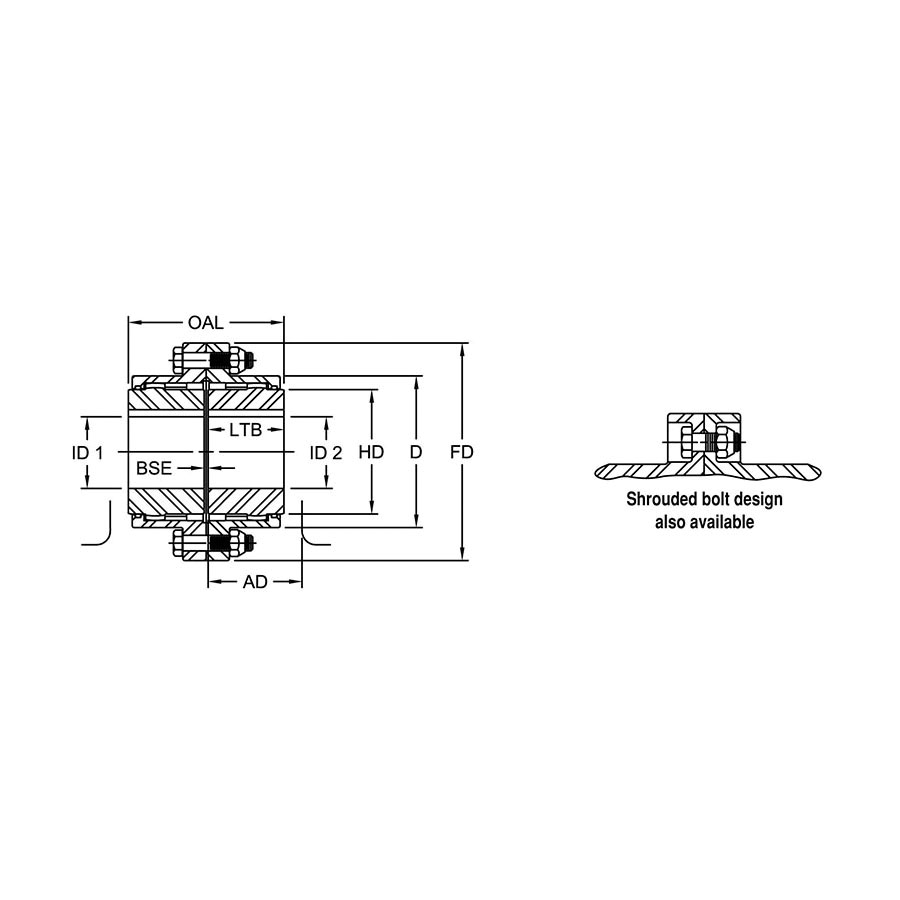

The F Type coupling consists of two flex hubs, two sleeves and one accessory kit. Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5-1/2. The F Type has a max angular misalignment of 3 deg (1.5 deg per gear mesh).
Lovejoy® Coupling Sleeve, Type F Exposed Bolt Flanged Flexible, 2 in Coupling, 7 in OD, For Use With: Sier-Bath® Flex-Flex Gear Couplings, 1045 Steel, Metallic
SPECIFICATIONS
| Type | : | Type F Exposed Bolt Flanged Flexible |
| Outside Diameter | : | 7 in |
| Material | : | 1045 Steel |
| Suitable For Use With | : | Sier-Bath® Flex-Flex Gear Couplings |
| Coupling Size | : | 2 in |
| Finish | : | Metallic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400174_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400400_Catalog.pdf
