Lovejoy®
68514476854

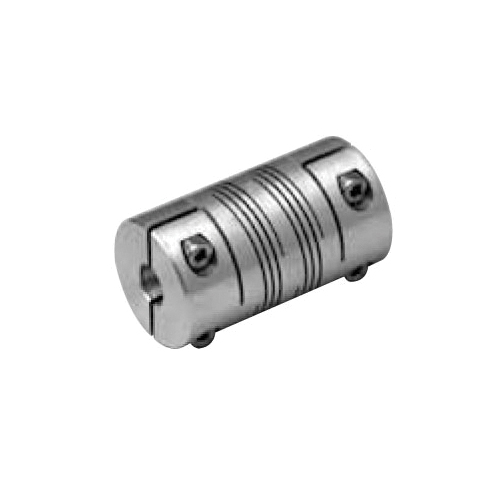

Lovejoy® 68514476854 ADB Series Double Beam Clamp Style Coupling, 1/2 in, 5/8 in Dia Bore, 1-1/2 in OD, 2.626 in OAL, 88 in-lb Torque, 10000 rpm Max
- Item#: ADB7 BEAM CPLG 1/2X5/8
- Mfr#: 68514476854
- UPC: 685144768544
- Zero backlash design
- Simple one-piece assembly
- Largest amount of angular misalignment capacity
- Without keyway
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The ADB (aluminum double beam) Series Coupling enhances the beam Coupling options available from Lovejoy®. The longer overall length allows the ADB Series to span longer BSE (between shaft end) measurements. The aluminum material used in its construction keeps the Coupling's weight low. The ADB design offers two flex points allowing for greater angular misalignment, up to 7 deg. This design also allows for up to 0.024 in of parallel misalignment. The torque capacity ADB Series is more than double the range of the single beam designs, with the largest size having a torque capacity of 88 in-lb.
Lovejoy® Coupling, Double Beam Clamp Style, Series: ADB Series, 1/2 in, 5/8 in Bore, 1-1/2 in OD, 2.626 in Overall Length, 0.709 in Length Through Bore, 88 in-lb Torque, 10000 rpm Maximum, 200 deg F, Anodized Aluminum
SPECIFICATIONS
| Length Through Bore | : | 0.709 in |
| Material | : | Anodized Aluminum |
| Series | : | ADB Series |
| Temperature Rating | : | 200 deg F |
| Type | : | Double Beam Clamp Style |
| Bore Diameter | : | 1/2 in, 5/8 in |
| Outside Diameter | : | 1-1/2 in |
| Overall Length | : | 2.626 in |
| Torque Rating | : | 88 in-lb |
| Maximum Speed | : | 10000 rpm |
