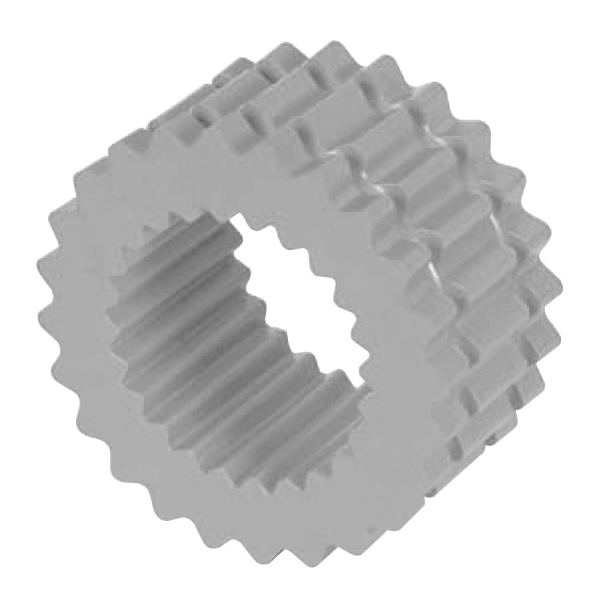

Lovejoy® 68514436514 1-Piece Solid Elastomer Sleeve, 8H Coupling, 2-1/2 in L, 5.06 in OD, 4500 rpm Max, DuPont® Hytrel®
- CP#:
- Item#: 8H LOV
- Mfr#: 68514436514
- UPC: 685144365149
- The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
- Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
- No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
- Torque is transmitted through shear loading of the sleeve
- All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
- Hytrel® is a polyester elastomer designed for high torque and high temperature applications and offers excellent resistance to chemical and oil conditions
- The sleeves in Hytrel® material are designed to transmit power for high torque applications
- Because of the design and the properties of the Hytrel® molded sleeve, the H and HS sleeves should not be used as direct replacements for EPDM or neoprene sleeves and can only be used with S, TF or SC flanges
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® Elastomer Sleeve, 1-Piece Solid, 8H Coupling, 2-1/2 in Length, 0.75 to 1.938 in ID, 5.06 in OD, 4530 in-lb Torque, 4500 rpm Maximum, For Use With: S-Flex Endurance™ Coupling, -65 to 250 deg F, DuPont® Hytrel®, Orange
SPECIFICATIONS
| Type | : | 1-Piece Solid |
| Inside Diameter | : | 0.75 to 1.938 in |
| Outside Diameter | : | 5.06 in |
| Material | : | DuPont® Hytrel® |
| Temperature Rating | : | -65 to 250 deg F |
| Torque Rating | : | 4530 in-lb |
| Suitable For Use With | : | S-Flex Endurance™ Coupling |
| Finish | : | Orange |
| Coupling Size | : | 8H |
| Length | : | 2-1/2 in |
| Maximum Speed | : | 4500 rpm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514435183_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514436514_Specification_Sheet.pdf
