68514436140

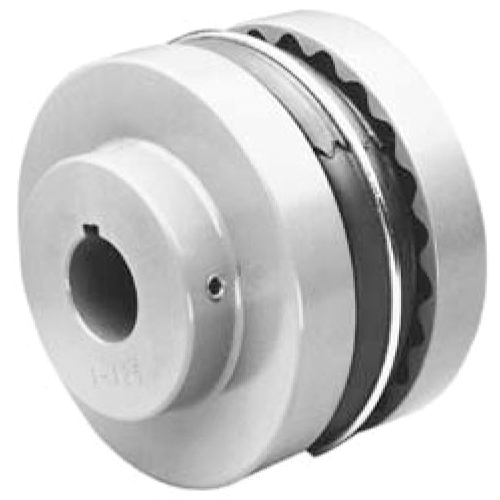

Lovejoy® S-Flex Endurance™ 68514436140 Type S Finished Bore Coupling Flange, 8S Coupling, 1-3/8 in Dia Bore, 2.1 in L Through Bore, 3-1/4 in Dia Hub, Cast Iron
- CP#:
- Item#: 8SX1-3/8LOV
- Mfr#: 68514436140
- UPC: 685144361400
- S flanges are made of high strength cast iron and are bored to size for a slip fit on standard shafts
- The S-type coupling consists of two flanges and one sleeve
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® S-Flex Endurance™ Coupling Flange, Type S Finished Bore, 8S Coupling, 1-3/8 in Bore, 3-1/4 in Diameter Hub, 3/4 in Hub Length, 5/16 x 5/32 in Keyway, 4500 rpm Maximum, 2.1 in Length Through Bore, 3/8-16 Screw, Cast Iron
SPECIFICATIONS
| Type | : | Type S Finished Bore |
| Material | : | Cast Iron |
| Maximum Speed | : | 4500 rpm |
| Screw Size | : | 3/8-16 |
| Hub Length | : | 3/4 in |
| Keyway Size | : | 5/16 x 5/32 in |
| Coupling Size | : | 8S |
| Length Through Bore | : | 2.1 in |
| Hub Diameter | : | 3-1/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514435183_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514435183_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514436140_Specification_Sheet.pdf
