68514436051

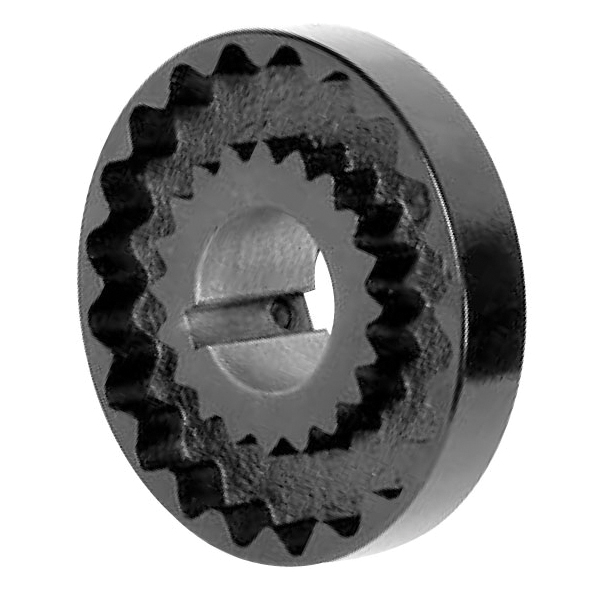

Lovejoy® S-Flex Endurance™ 68514436051 Type J Finished Bore Coupling Flange, 4J Coupling, 1/2 in Dia Bore, 0.88 in L Through Bore, 1.63 in Dia Hub, Die Cast Zinc
- CP#:
- Item#: 4J FLNG 1/2 1/8X1/16 KW
- Mfr#: 68514436051
- UPC: 685144360519
- The J-type flanges in sizes 3J and 4J are made from die cast of high strength zinc alloy (tensile strength of 41000 psi) and are furnished bore to size
- J flanges are compatible with EPDM or neoprene sleeves
- Each flange has a keyway and two setscrews (one setscrew over the key and one at 90 deg to the keyway)
- The J-type coupling consists of two flanges and one sleeve
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® S-Flex Endurance™ Coupling Flange, Type J Finished Bore, 4J Coupling, 1/2 in Bore, 1.63 in Diameter Hub, 0.44 in Hub Length, 1/8 x 1/16 in Keyway, 7600 rpm Maximum, 0.88 in Length Through Bore, 1/4-20 Screw, Die Cast Zinc
SPECIFICATIONS
| Type | : | Type J Finished Bore |
| Material | : | Die Cast Zinc |
| Maximum Speed | : | 7600 rpm |
| Screw Size | : | 1/4-20 |
| Hub Length | : | 0.44 in |
| Keyway Size | : | 1/8 x 1/16 in |
| Coupling Size | : | 4J |
| Length Through Bore | : | 0.88 in |
| Hub Diameter | : | 1.63 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514435183_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514435183_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514436051_Specification_Sheet.pdf
