- Lovejoy® 68514424672
68514424672

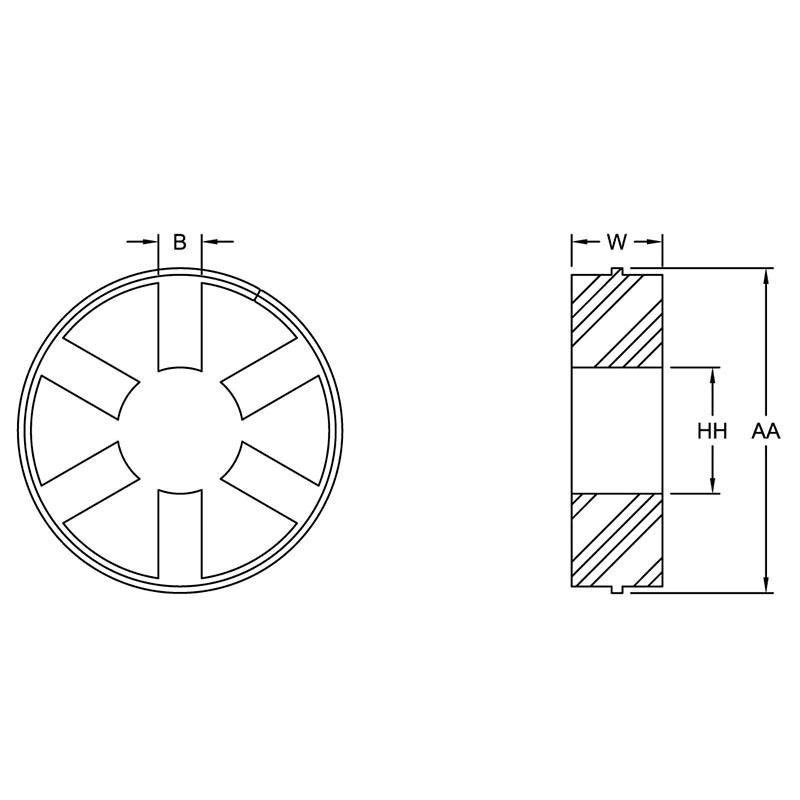

Lovejoy® 68514424672 Type SW Snap Wrap Spider With Ring, SW150 Coupling, 4.56 in OD, 3600 rpm Max, Buna-N
- CP#:
- Item#: SW150 SNAP WRAP W/RING
- Mfr#: 68514424672
- UPC: 685144246721
- Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil-resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40 to 212 deg F (-40 to 100 deg C)
- Good resistance to oil
- Standard elastomer (also applies to SXB cushions)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Lovejoy® Spider, Type SW Snap Wrap, SW150 Coupling, 1-3/4 in ID, 4.56 in OD, 140 N-m Torque, 3600 rpm Maximum, For Use With: Type SW Jaw Coupling, -40 to 212 deg F, 80A Durometer, Buna-N, Black
SPECIFICATIONS
| Type | : | Type SW Snap Wrap |
| Inside Diameter | : | 1-3/4 in |
| Outside Diameter | : | 4.56 in |
| Material | : | Buna-N |
| Torque Rating | : | 140 N-m |
| Durometer | : | 80A |
| Suitable For Use With | : | Type SW Jaw Coupling |
| Temperature Rating | : | -40 to 212 deg F |
| Finish | : | Black |
| Coupling Size | : | SW150 |
| Maximum Speed | : | 3600 rpm |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514411071_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514411133_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514424672_Specification_Sheet.pdf -
VIDEO LINK
https://youtu.be/yi87OZ6IzEc
