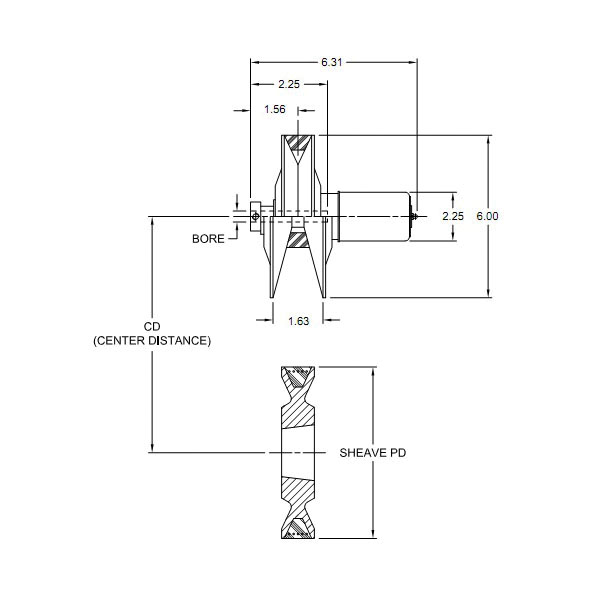

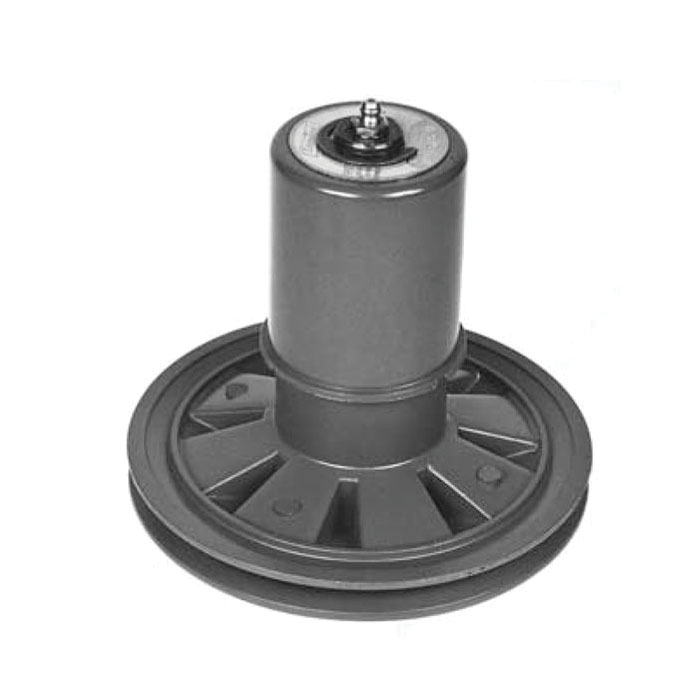

Lovejoy® 68514418572 Aluminoline Series Two-Side Moveable Spring Loaded Driver Pulley, 1/2 in Dia Bore, 6 in OD

  • Item#: 160X1/2-P01
  • Mfr#: 68514418572
  • UPC: 685144185723
    • Ratings for 1/3 through 1-1/2 hp motors
    • Unique "intermeshing" flange design
    • Greater speed ratios (up to 2-3/4 to 1) with a narrow-belt adjustable center drive than any other pulley
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Lovejoy® Spring Loaded Driver Pulley, Two-Side Moveable, Series: Aluminoline Series, 1/2 in Bore, 6 in OD, 6.31 in Overall Length, For Use With: Standard A Variable Speed Drives, Aluminum

SPECIFICATIONS

Overall Length      :      6.31 in
Series      :      Aluminoline Series
Material      :      Aluminum
Bore Diameter      :      1/2 in
Outside Diameter      :      6 in
Suitable For Use With      :      Standard A Variable Speed Drives
Type      :      Two-Side Moveable

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514418572_Specification_Sheet.pdf
