UG344L

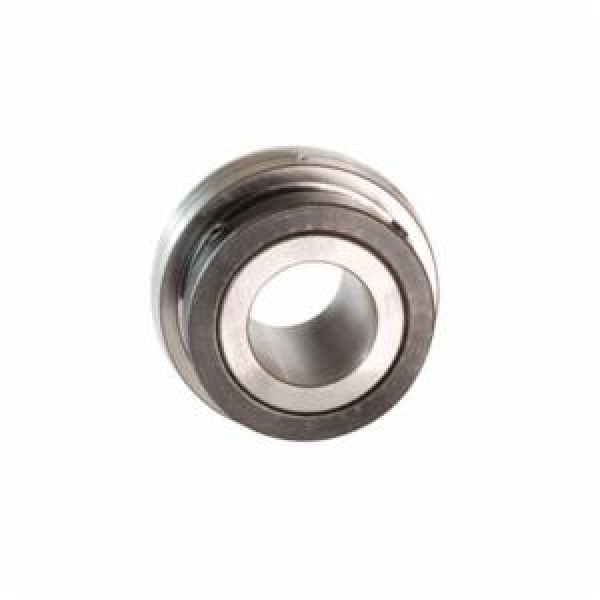

Link-Belt® UG344L 300 Heavy Duty Unmounted Ball Bearing Unit With Collar and Setscrews, 2-3/4 in Dia Bore, 5.9055 in OD, 3-13/16 in W, 23420 lb Dynamic/15300 lb Static Load
- CP#:
- Item#: UG344L
- Mfr#: UG344L
- UPC: 662327735296
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Spyglass optical strain sensor technology
- Positive locking system minimizes vibration
- Case carburized inner ring resists fracture under shock and heavy loads
- Tapered adapter assembly
- Wide inner ring for greater contact surface between shaft and bearing
- Setscrew locking device
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact 1-piece cast iron housings provide strength with minimum size, weight and excellent rigidity
- Clearance seal
- Steel clad clearance seal
- 344 size code
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.
Link-Belt® Ball Bearing Unit, Heavy Duty Unmounted, Series: 300, 2-3/4 in Bore Dia, 5.9055 in Outside Dia, 3-13/16 in Width, 23420 lb Dynamic/15300 lb Static Load, 3950 rpm Maximum, 225 deg F
SPECIFICATIONS
| Series | : | 300 |
| Load Capacity | : | 23420 lb Dynamic/15300 lb Static |
| Maximum Speed | : | 3950 rpm |
| Outside Diameter | : | 5.9055 in |
| Inside Diameter | : | 2-3/4 in |
| Mounted | : | Yes |
| Width | : | 3-13/16 in |
