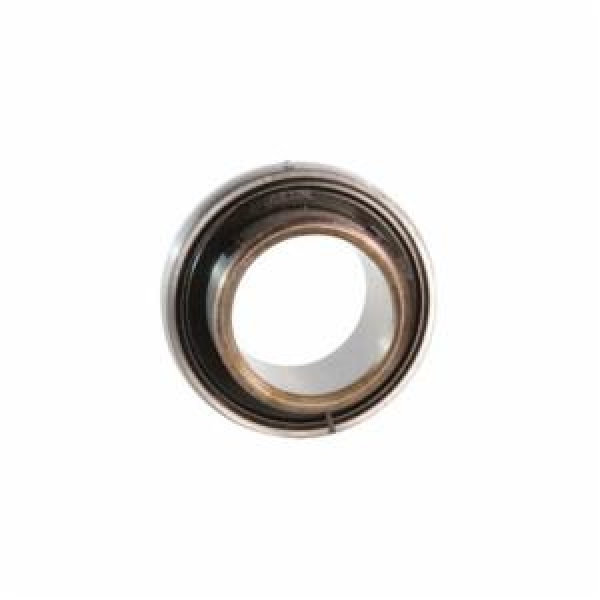

UG220NL
Link-Belt® UG220NL 200 Standard Duty Unmounted Ball Bearing Unit With Collar and Setscrews, 1-1/4 in Dia Bore, 2.8346 in OD, 1-49/64 in W, 5810 lb Dynamic/3440 lb Static Load
- CP#:
- Item#: UG220NL
- Mfr#: UG220NL
- UPC: 662327149376
- Compact 1-piece housing provides excellent mounting support
- Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
- Wide inner ring for increased shaft stability
- Spherical outside diameter of outer ring
- Relubricatable bearing
- Setscrew locking device
- Single lip contact seal
- 207 size code
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.
Link-Belt® Ball Bearing Unit, Standard Duty Unmounted, Series: 200, 1-1/4 in Bore Dia, 2.8346 in Outside Dia, 1-49/64 in Width, 5810 lb Dynamic/3440 lb Static Load, Chrome Steel Bearing, 6850 rpm Maximum, 225 deg F, Uncoated
SPECIFICATIONS
| Series | : | 200 |
| Bearing Material | : | Chrome Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 5810 lb Dynamic/3440 lb Static |
| Maximum Speed | : | 6850 rpm |
| Outside Diameter | : | 2.8346 in |
| Inside Diameter | : | 1-1/4 in |
| Mounted | : | Yes |
| Width | : | 1-49/64 in |
