TU336

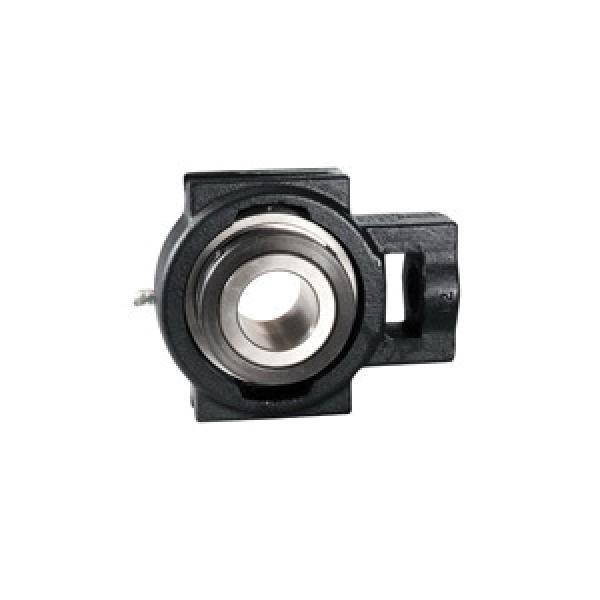

Link-Belt® TU336 300 Fixed Heavy Duty Take-Up Ball Bearing Unit, 2-1/4 in Bore Dia, 8-5/8 in L x 3-5/16 in W x 6-3/4 in H, 18390 lb Dynamic/11700 lb Static Load
- CP#:
- Item#: TU336
- Mfr#: TU336
- UPC: 662327709648
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Wide inner ring is for greater contact surface between shaft and bearing
- Case carburized inner ring resists fracture under shock and heavy loads
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
- Cast iron housing
- Spring locking setscrew mount
- Alignable and relubricatable
- Machined slots
- Bearing sealed unit
- Clearance seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Take-Up Ball Bearing Unit, Fixed Heavy Duty, Series: 300, 2-1/4 in Bore Dia, 8-5/8 in Length, 3-5/16 in Width, 6-3/4 in Height, 18390 lb Dynamic/11700 lb Static, Alloy Steel Bearing, 225 deg F, Powder Coated
SPECIFICATIONS
| Series | : | 300 |
| Bearing Material | : | Alloy Steel |
| Finish | : | Powder Coated |
| Height | : | 6-3/4 in |
| Length | : | 8-5/8 in |
| Load Capacity | : | 18390 lb Dynamic/11700 lb Static |
| Inside Diameter | : | 2-1/4 in |
| Mounted | : | Yes |
| Width | : | 3-5/16 in |
