Link-Belt® TH3S216E
Link-Belt®

Link-Belt® TH3S216E

loading
Link-Belt®
Email Print

TH3S216E

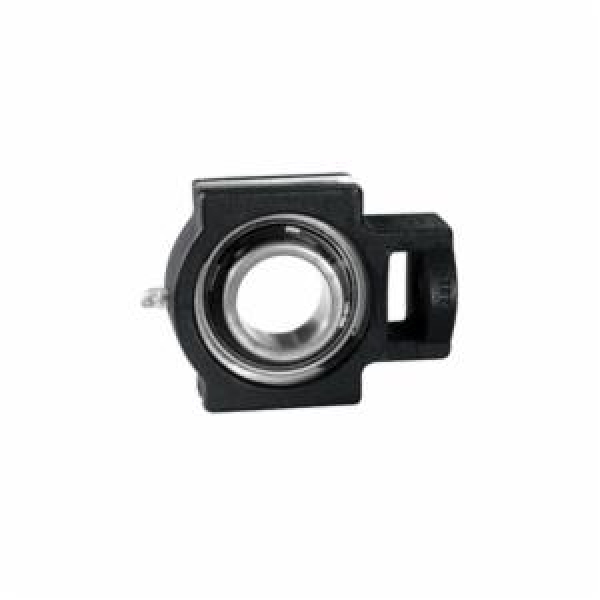

Link-Belt® TH3S216E 200 Intermediate Duty Wide Slot Take-Up Ball Bearing Unit, 1 in Dia Bore, 3-7/8 in L x 1-3/8 in W x 3-1/2 in H, 3150 lb Dynamic/1760 lb Static Load

  • Item#: TH3S216E
  • Mfr#: TH3S216E
  • UPC: 662327667160
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Compact, 1-piece housing provides excellent mounting support
  • Cast iron housing
  • Narrow inner ring, setscrew locking
  • Non-relubricatable bearing
  • Integral bearing seals
  • Single lip contact seal
  • Size code 205
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

200 series standard and intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Take-Up Ball Bearing Unit, Intermediate Duty Wide Slot, Series: 200, 1 in Bore Dia, 3-7/8 in Length, 1-3/8 in Width, 3-1/2 in Height, 3150 lb Dynamic/1760 lb Static Load, Alloy Steel Bearing, 225 deg F, Powder Coated

SPECIFICATIONS

Series      :      200
Bearing Material      :      Alloy Steel
Finish      :      Powder Coated
Height      :      3-1/2 in
Length      :      3.875 in
Load Capacity      :      3150 lb Dynamic/1760 lb Static
Inside Diameter      :      1 in
Mounted      :      Yes
Width      :      1-3/8 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
