Link-Belt® TDS3U239N24
Link-Belt®

Link-Belt® TDS3U239N24

loading
Link-Belt®
Email Print

TDS3U239N24

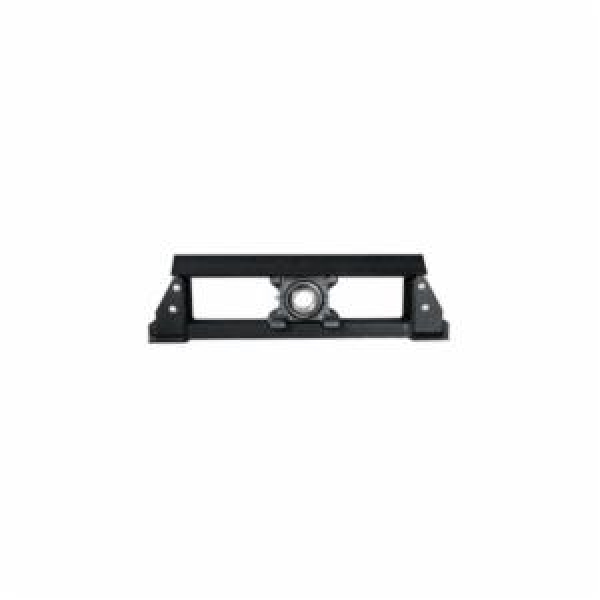

Link-Belt® TDS3U239N24 200 Standard-Duty Hinged Top Take-Up Frame Ball Bearing Assembly, 4-1/8 in W, Cast Iron

  • Item#: TDS3U239N24
  • Mfr#: TDS3U239N24
  • UPC: 662327142995
  • Protected screw welded steel frame
  • Wide inner ring for increased shaft stability
  • Spring locking setscrew mount
  • Alignable and non-relubricatable
  • Single lip contact seal
  • Integral bearing seals
  • 24 in travel length
  • 2-7/16 in Dia shaft
  • Size code 212
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

200 series standard and intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Take-Up Frame Ball Bearing Assembly, Standard-Duty Hinged Top, Series: 200, 4-1/8 in Width, Cast Iron, Powder Coated

SPECIFICATIONS

Finish      :      Powder Coated
Series      :      200
Material      :      Cast Iron
Width      :      4-1/8 in
Mounted      :      Yes

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
