Link-Belt® SG223EL
Link-Belt®

Link-Belt® SG223EL

loading
Link-Belt®
Email Print

SG223EL

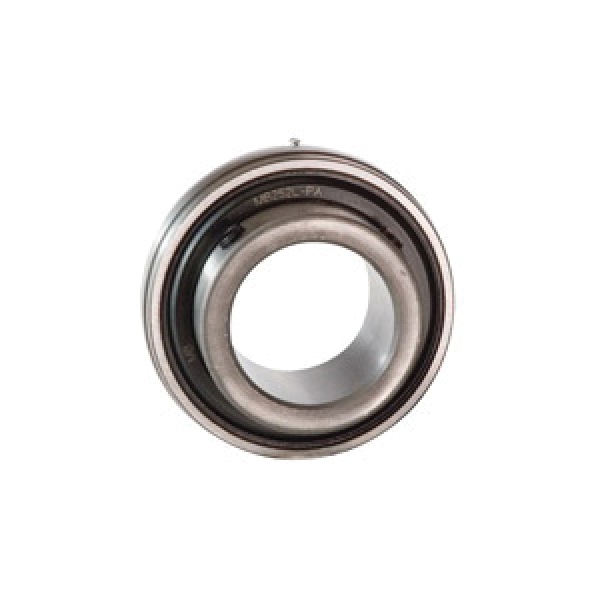

Link-Belt® SG223EL 200 Intermediate Duty Unmounted Ball Bearing With Collar and Setscrews, 1-7/16 in Bore Dia, 2.8346 in OD, 1-9/16 in W, 5810 lb Dynamic/3440 lb Static

  • Item#: SG223EL
  • Mfr#: SG223EL
  • UPC: 662327136758
  • Extended inner ring
  • Outside diameter of outer ring is spherical
  • Relubricatable bearing
  • Setscrew locking device
  • Single lip contact seal
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.

Link-Belt® Ball Bearing, Intermediate Duty Unmounted, Series: 200, 1-7/16 in Bore Dia, 2.8346 in Outside Dia, 1-9/16 in Width, 5810 lb Dynamic/3440 lb Static, Alloy Steel Bearing, 4800 rpm Maximum, 225 deg F, Uncoated

SPECIFICATIONS

Series      :      200
Bearing Material      :      Alloy Steel
Finish      :      Uncoated
Load Capacity      :      5810 lb Dynamic/3440 lb Static
Maximum Speed      :      4800 rpm
Outside Diameter      :      2.8346 in
Inside Diameter      :      1-7/16 in
Mounted      :      Yes
Width      :      1-9/16 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_W2245S_Manual.pdf
