PLB6879FR

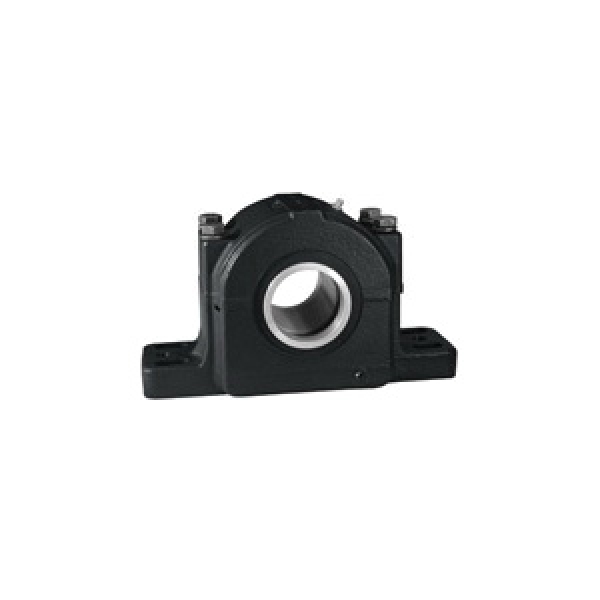

Link-Belt® PLB6879FR 6800 2-Piece Split Pillow Block Spherical Roller Bearing, 4-15/16 in Dia Bore, 16 to 17-1/8 in L Bolt Center-to-Center, 6 in Base to Bore Centerline, 20-1/8 in OAL x 11-13/16 in OAH
- CP#:
- Item#: PLB6879FR
- Mfr#: PLB6879FR
- UPC: 662327118068
- Removable housing cap
- Caps and bases matched and marked
- Base and cap are dowelled for accurate assembly and security
- Large lubricant reservoir in base prolongs lubrication interval
- Slotted bolt holes in base facilitate mounting, machined finish on base for firm seating on supporting surface
- Dimpled flats for bearing monitor probes
- Large reservoir for grease or oil storage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Self aligning spherical roller bearing pillow blocks and take-ups provide high load carrying capacity for radial or combination radial and thrust loads. They are designed for use on conveyors, dryers, road building equipment, runout tables, fans, crushers, hammermills and many other high-precision, heavy-duty applications.
Link-Belt® Pillow Block Spherical Roller Bearing, 2-Piece Split, Series: 6800, 4-15/16 in Bore, 16 to 17-1/8 in Bolt Center-to-Center Length, 6 in Base to Bore Centerline, 20-1/8 in Overall Length, 7-3/4 in Overall Width, 11-13/16 in Overall Height, Four-Bolt Base Mounting, Round Bore, 5-7/8 in Base Width, Adapter Mounted Locking Device, Multi-Labyrinth Seal, Non-Expansion (Fixed) Expansion, 166000 lb Dynamic/228000 lb Static Load, 225 deg F, 1700 rpm Grease/1950 rpm Oil Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 5-7/8 in |
| Base to Bore Centerline | : | 6 in |
| Series | : | 6800 |
| Bolt Center-to-Center Length | : | 16 to 17-1/8 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Adapter Mounted |
| Finish | : | Powder Coated |
| Overall Length | : | 20-1/8 in |
| Load Capacity | : | 166000 lb Dynamic/228000 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 1700 rpm Grease/1950 rpm Oil |
| Overall Width | : | 7-3/4 in |
| Inside Diameter | : | 4-15/16 in |
| Mounted | : | Yes |
| Overall Height | : | 11-13/16 in |
| Seal Type | : | Multi-Labyrinth |
