P3S2E20E

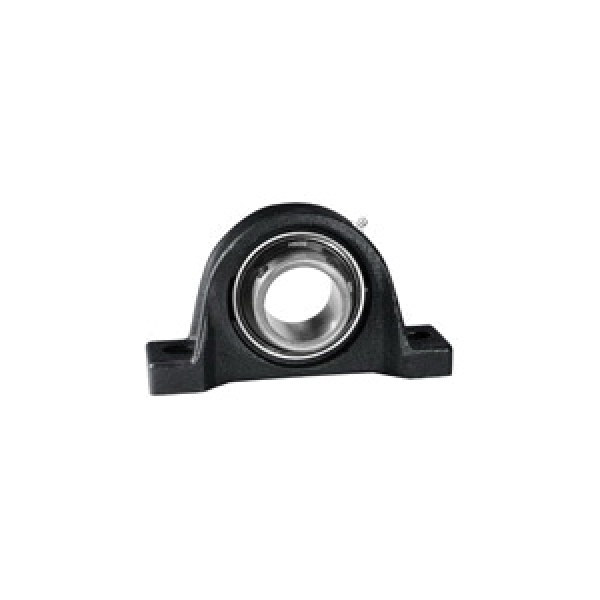

Link-Belt® P3S2E20E 200 Intermediate Duty Pillow Block Ball Bearing, 1-1/4 in Dia Bore, 4-5/8 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 6-5/16 in OAL x 3-5/16 in OAH
- CP#:
- Item#: P3S2E20E
- Mfr#: P3S2E20E
- UPC: 662327120382
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Relubricatable bearing
- Standard backing
- Integral bearing seals
- Narrow inner ring
- Inner ring bore equal to a bore of following larger bearing group
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Pillow Block Ball Bearing, Intermediate Duty, Series: 200, 1-1/4 in Bore, 4-5/8 in Bolt Center-to-Center Length, 1-11/16 in Base to Bore Centerline, 6-5/16 in Overall Length, 1-11/32 in Overall Width, 3-5/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-5/8 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 4390 lb Dynamic/2530 lb Static Load, 225 deg F, 5600 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 1-5/8 in |
| Base to Bore Centerline | : | 1-11/16 in |
| Series | : | 200 |
| Bolt Center-to-Center Length | : | 4-5/8 in |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Powder Coated |
| Overall Length | : | 6-5/16 in |
| Load Capacity | : | 4390 lb Dynamic/2530 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 5600 rpm |
| Overall Width | : | 1-11/32 in |
| Inside Diameter | : | 1-1/4 in |
| Mounted | : | Yes |
| Overall Height | : | 3-5/16 in |
| Seal Type | : | Single Lip |
