Link-Belt® P3S235E
Link-Belt®

Link-Belt® P3S235E

loading
Link-Belt®
Email Print

P3S235E

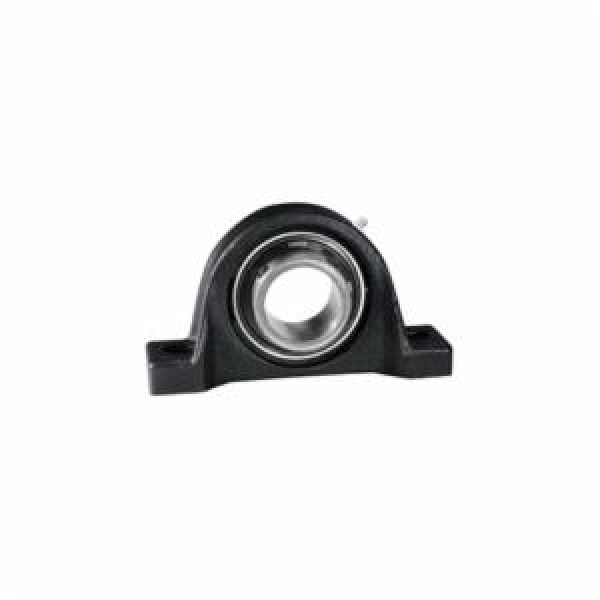

Link-Belt® P3S235E 200 Intermediate Duty Pillow Block Ball Bearing Unit, 2-3/16 in Dia Bore, 6-15/16 in L Bolt Center-to-Center, 2-1/2 in Base to Bore Centerline, 8-7/8 in OAL x 4-31/32 in OAH

  • Item#: P3S235E
  • Mfr#: P3S235E
  • UPC: 662864714174
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Compact 1-piece housing provides excellent mounting support
  • Relubricatable bearing
  • Standard backing
  • Integral bearing seals
  • Narrow inner ring
  • 211 size code
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Pillow Block Ball Bearing Unit, Intermediate Duty, Series: 200, 2-3/16 in Bore, 6-15/16 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 1-13/16 in Overall Width, 4-31/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-5/16 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 9800 lb Dynamic/6570 lb Static Load, 225 deg F, 3200 rpm Maximum, Cast Iron, Powder Coated

SPECIFICATIONS

Base Width      :      2-5/16 in
Base to Bore Centerline      :      2-1/2 in
Series      :      200
Bolt Center-to-Center Length      :      6-15/16 in
Mounting Type      :      Two-Bolt Base
Expansion Type      :      Non-Expansion (Fixed)
Locking Device      :      Set Screw
Finish      :      Powder Coated
Overall Length      :      8-7/8 in
Load Capacity      :      9800 lb Dynamic/6570 lb Static
Material      :      Cast Iron
Maximum Speed      :      3200 rpm
Overall Width      :      1-13/16 in
Inside Diameter      :      2-3/16 in
Mounted      :      Yes
Overall Height      :      4-31/32 in
Seal Type      :      Single Lip

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
