Link-Belt® MSLN10
Link-Belt®

Link-Belt® MSLN10

loading
Link-Belt®
Email Print

MSLN10

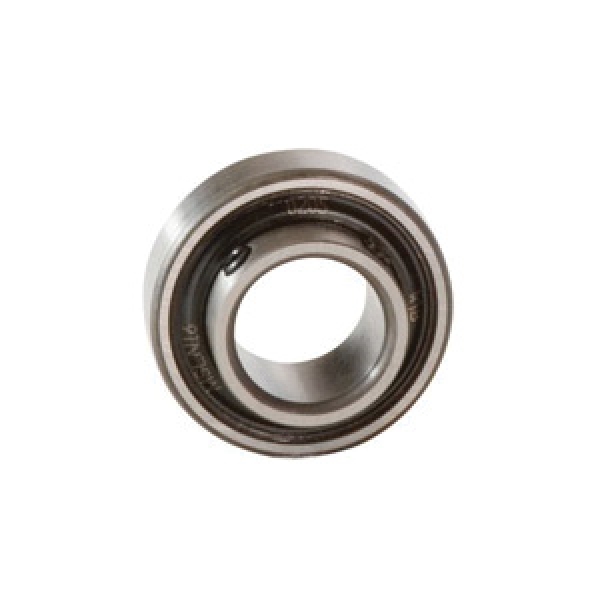

Link-Belt® MSLN10 200 Intermediate Duty Unmounted Ball Bearing, 5/8 in Bore Dia, 1.5748 in OD, 51/64 in W, 2360 lb Dynamic/1110 lb Static

  • Item#: MSLN10
  • Mfr#: MSLN10
  • UPC: 662864005708
  • Narrow inner ring
  • Cylindrical outside diameter
  • Non-relubricatable bearing
  • Setscrew locking device
  • Single lip contact seal
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.

Link-Belt® Ball Bearing, Intermediate Duty Unmounted, Series: 200, 5/8 in Bore Dia, 1.5748 in Outside Dia, 51/64 in Width, 2360 lb Dynamic/1110 lb Static, Alloy Steel Bearing, 12000 rpm Maximum, -40 to 225 deg F, Uncoated

SPECIFICATIONS

Series      :      200
Bearing Material      :      Alloy Steel
Finish      :      Uncoated
Load Capacity      :      2360 lb Dynamic/1110 lb Static
Maximum Speed      :      12000 rpm
Outside Diameter      :      1.5748 in
Inside Diameter      :      5/8 in
Mounted      :      Yes
Width      :      51/64 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_W2245S_Manual.pdf
