MFCS235N

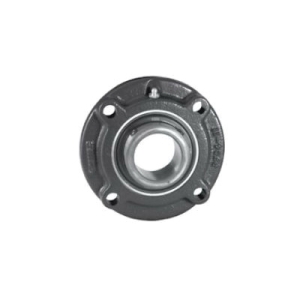

Link-Belt® MFCS235N 200 Medium Duty Flange Block Ball Bearing, 2-3/16 in Dia Bore, 6 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 7-1/8 in OAL/Dia
- CP#:
- Item#: MFCS235N
- Mfr#: MFCS235N
- UPC: 662864804233
- Alignable and relubricatable
- Cast iron housing
- Single lip contact seal
- Narrow inner ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series medium duty ball bearings provide design and performance features developed by decades of experience in supplying precision ball bearing inserts for other major mounted bearing manufacturers and complete mounted units to machinery and equipment manufacturers. They are priced competitively to bearings of comparable construction and design. In addition to sound basic design and construction, special features minimize the three most common causes of premature bearing failure loosening of bearings on rotating shafts, entrance of contaminants or loss of lubricant due to seal failure and insufficient housing strength.
Link-Belt® Flange Block Ball Bearing, Medium Duty, Series: 200, 2-3/16 in Bore, 6 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 7-1/8 in Overall Length/Diameter, 2-11/64 in Overall Depth, Set Screw Locking Device, 11840 lb Dynamic/8080 lb Static Load, 4000 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Series | : | 200 |
| Bolt Circle Diameter | : | 6 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Set Screw |
| Load Capacity | : | 11840 lb Dynamic/8080 lb Static |
| Maximum Speed | : | 4000 rpm |
| Overall Depth | : | 2-11/64 in |
| Inside Diameter | : | 2-3/16 in |
| Overall Length/Diameter | : | 7-1/8 in |
| Mounted | : | Yes |
