MA5212TV

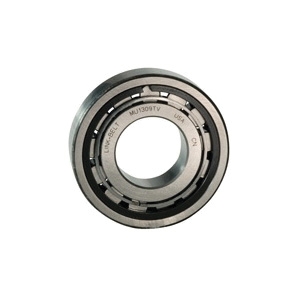

Link-Belt® MA5212TV 5200 Light Wide Width Cylindrical Roller Bearing, 60 mm Dia Bore, 110 mm OD, 1 Row, 36.512 mm W, 24700 lb Dynamic/38900 lb Static Load
- CP#:
- Item#: MA5212TV
- Mfr#: MA5212TV
- UPC: 662327053017
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Plain cylindrical inner ring
- Standard capacity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Wide Width, Series: 5200 Light, 60 mm Bore Dia, 110 mm Outside Dia, 1 Row, 36.512 mm W, Open Closure, 24700 lb Dynamic/38900 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated
SPECIFICATIONS
| Series | : | 5200 Light |
| Bearing Material | : | Chrome Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 24700 lb Dynamic/38900 lb Static |
| Outside Diameter | : | 110 mm |
| Number of Rows | : | 1 |
| Inside Diameter | : | 60 mm |
| Mounted | : | No |
| Width | : | 36.512 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_MA1309_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_MA5210_Specification_Sheet.pdf
