M5222TV

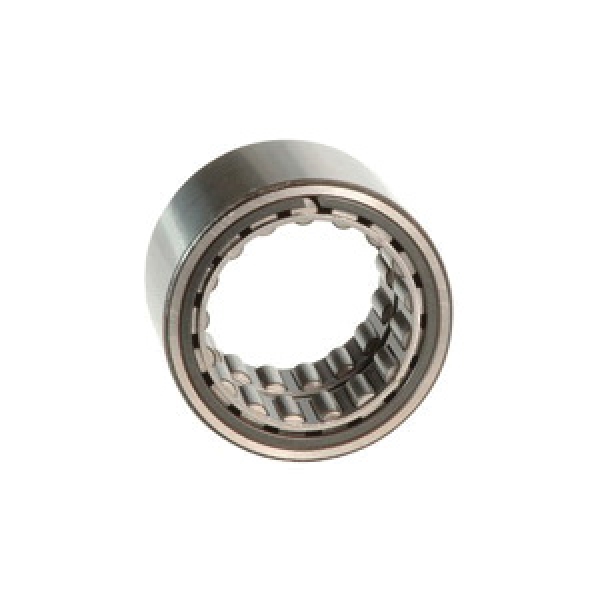

Link-Belt® M5222TV 5200 Light Wide Width Cylindrical Roller Bearing, 110 mm Dia Bore, 200 mm OD, 1 Row, 69.85 mm W, 97600 lb Dynamic/147000 lb Static Load
- CP#:
- Item#: M5222TV
- Mfr#: M5222TV
- UPC: 662327108205
- High quality rings
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Standard capacity
- Without Inner Ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Wide Width, Series: 5200 Light, 110 mm Bore Dia, 200 mm Outside Dia, 1 Row, 69.85 mm W, Open Closure, 97600 lb Dynamic/147000 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated
SPECIFICATIONS
| Series | : | 5200 Light |
| Bearing Material | : | Chrome Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 97600 lb Dynamic/147000 lb Static |
| Outside Diameter | : | 200 mm |
| Number of Rows | : | 1 |
| Inside Diameter | : | 110 mm |
| Mounted | : | No |
| Width | : | 69.85 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_MA1309_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_MA5210_Specification_Sheet.pdf
