L504R25BX

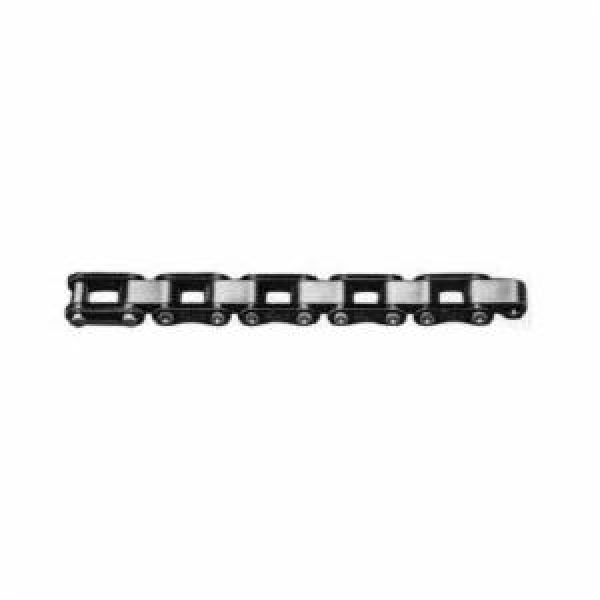

Link-Belt® L504R25BX L-500 Riveted Laminated Block Roller Chain, 25 ft OAL, 1 in Pitch, Steel
- CP#:
- Item#: L504R25BX
- Mfr#: L504R25BX
- UPC: 698210244606
- High temperature factory pre-lubrication for long life at high speeds
- Case-hardened pin for maximum wear life
- Wide waist sidebars for superior fatigue strength
- Pre-stressed after assembly to reduce early break in wear
- Armor-cased pins for maximum wear resistance
- The broad surface can be dragged along a guide to reduce the catenary load on sprockets
- Block chain length tolerance is -0 to 1/16 in/ft
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Link-Belt block chain is precision-finished chain consisting of alternate block links and link plates, joined by pins. Solid blocks are made of sintered metal. Laminated blocks are made of laminated steel plates. All chain is 1 in pitch, with block links varying from 3/16 to 1/2 in W. Pitch is measured between centers of alternate pins in a taut chain, instead of between centers of adjacent pins.
Link-Belt® Roller Chain, Riveted Laminated Block, Series: L-500, 1 in Pitch, 0.19 in Pin Diameter, 0.61 in Pin Length, 0.325 in Plate Height, 0.08 in Plate Thickness, 1 Strands, 25 ft Overall Length, Steel
SPECIFICATIONS
| Number of Strands | : | 1 |
| Pin Diameter | : | 0.19 in |
| Series | : | L-500 |
| Overall Length | : | 25 ft |
| Pitch | : | 1 in |
| Material | : | Steel |
| Plate Height | : | 0.325 in |
| Type | : | Riveted Laminated Block |
| Plate Thickness | : | 0.08 in |
| Pin Length | : | 0.61 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_0410FT_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_0410FT_Specification_Sheet.pdf
