FX3S214E

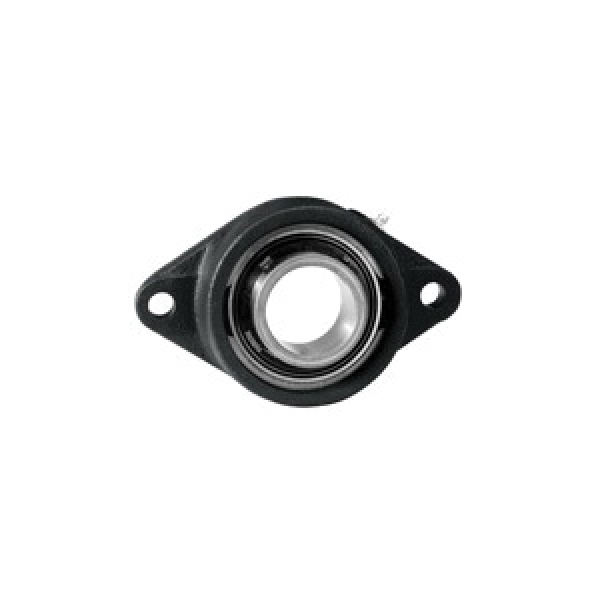

Link-Belt® FX3S214E 200 Intermediate Duty Flange Block Ball Bearing, 7/8 in Dia Bore, 3-57/64 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-3/4 in OAL/Dia
- CP#:
- Item#: FX3S214E
- Mfr#: FX3S214E
- UPC: 662327033934
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Narrow inner ring
- Cast iron housing
- Single lip contact seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Intermediate Duty, Series: 200, 7/8 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-3/4 in Overall Length/Diameter, 1-5/16 in Overall Depth, 4-7/8 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, 6800 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-57/64 in |
| Series | : | 200 |
| Bearing Material | : | Alloy Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 2-Bolt |
| Locking Device | : | Set Screw |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Maximum Speed | : | 6800 rpm |
| Overall Depth | : | 1-5/16 in |
| Overall Height | : | 4-7/8 in |
| Inside Diameter | : | 7/8 in |
| Overall Length/Diameter | : | 2-3/4 in |
| Mounted | : | Yes |
