FU339

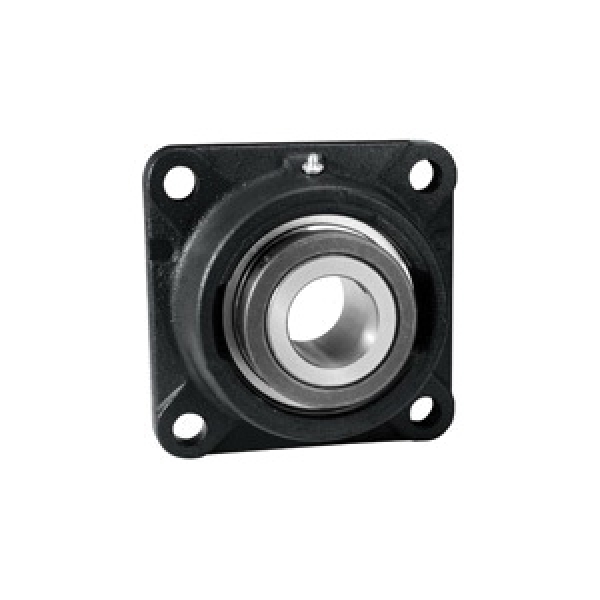

Link-Belt® FU339 300 Fixed Heavy Duty Flange Block Ball Bearing, 2-7/16 in Dia Bore, 6 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 7-5/8 in OAL/Dia
- CP#:
- Item#: FU339
- Mfr#: FU339
- UPC: 662327709631
- Steel clad clearance seal
- Alignable and relubricatable
- Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Flange Block Ball Bearing, Fixed Heavy Duty, Series: 300, 2-7/16 in Bore, 6 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 7-5/8 in Overall Length/Diameter, 3-15/32 in Overall Depth, 7-5/8 in Overall Height, Set Screw Locking Device, 18390 lb Dynamic/11700 lb Static Load, 4450 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 6 in |
| Series | : | 300 |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 18390 lb Dynamic/11700 lb Static |
| Maximum Speed | : | 4450 rpm |
| Overall Depth | : | 3-15/32 in |
| Overall Height | : | 7-5/8 in |
| Inside Diameter | : | 2-7/16 in |
| Overall Length/Diameter | : | 7-5/8 in |
| Mounted | : | Yes |
