FCB22428H

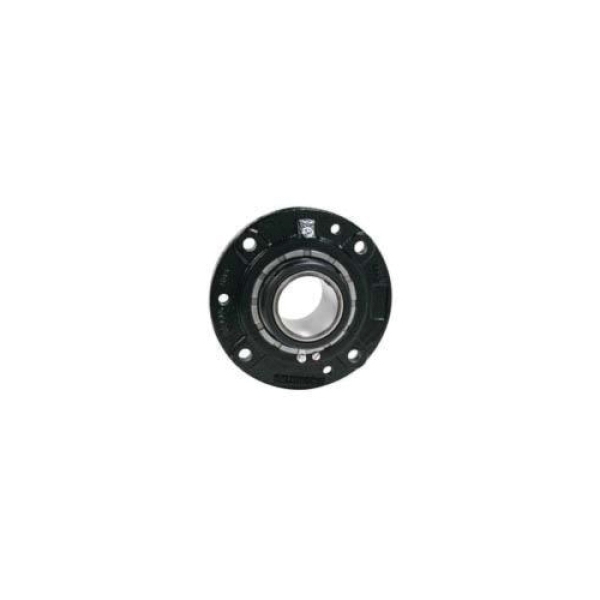

Link-Belt® FCB22428H B22400 Fixed Flanged Cartridge Block Spherical Roller Bearing, 1-3/4 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 5-1/8 in Dia Bolt Circle, 4-Bolt/Piloted Round Flange Mount, 6-1/8 in OAL/Dia
- CP#:
- Item#: FCB22428H
- Mfr#: FCB22428H
- UPC: 662327027322
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Self aligning type E interchange
- Cast iron housing
- Factory set clearance and lubrication
- Extended inner ring, separable outer rings
- Type H floating labyrinth clearance seals have multiple self-centering rings held securely in a steel carrier
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Link-Belt® Flanged Cartridge Block Spherical Roller Bearing, Fixed, Series: B22400, 1-3/4 in Bore, 3-5/8 in Bolt Center-to-Center Length, 5-1/8 in Diameter Bolt Circle, 4-Bolt/Piloted Round Flange Mounting, 6-1/8 in Overall Length/Diameter, 3-1/8 in Overall Depth, Single Set Screw Collar Locking Device, 24700 lb Dynamic/28700 lb Static Load, 3100 rpm Maximum, -40 to 400 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Series | : | B22400 |
| Bolt Circle Diameter | : | 5-1/8 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt/Piloted Round |
| Locking Device | : | Single Set Screw Collar |
| Load Capacity | : | 24700 lb Dynamic/28700 lb Static |
| Maximum Speed | : | 3100 rpm |
| Overall Depth | : | 3-1/8 in |
| Inside Diameter | : | 1-3/4 in |
| Overall Length/Diameter | : | 6-1/8 in |
| Mounted | : | Yes |
