FC3U227NC

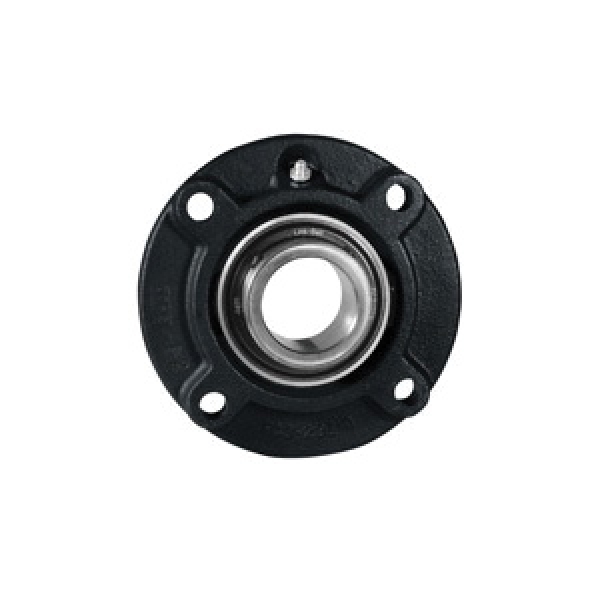

Link-Belt® FC3U227NC 200 Standard-Duty Flange Block Ball Bearing, 1-11/16 in Dia Bore, 5-1/8 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 6-1/8 in OAL/Dia
- CP#:
- Item#: FC3U227NC
- Mfr#: FC3U227NC
- UPC: 662327028701
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
- Closed end cap
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard-Duty, Series: 200, 1-11/16 in Bore, 5-1/8 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 6-1/8 in Overall Length/Diameter, 2-1/32 in Overall Depth, Set Screw Locking Device, Alloy Steel Bearing, 7370 lb Dynamic/4590 lb Static Load, 5330 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Series | : | 200 |
| Bolt Circle Diameter | : | 5-1/8 in |
| Bearing Material | : | Alloy Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Locking Device | : | Set Screw |
| Load Capacity | : | 7370 lb Dynamic/4590 lb Static |
| Maximum Speed | : | 5330 rpm |
| Overall Depth | : | 2-1/32 in |
| Inside Diameter | : | 1-11/16 in |
| Overall Length/Diameter | : | 6-1/8 in |
| Mounted | : | Yes |
