F3Y220N

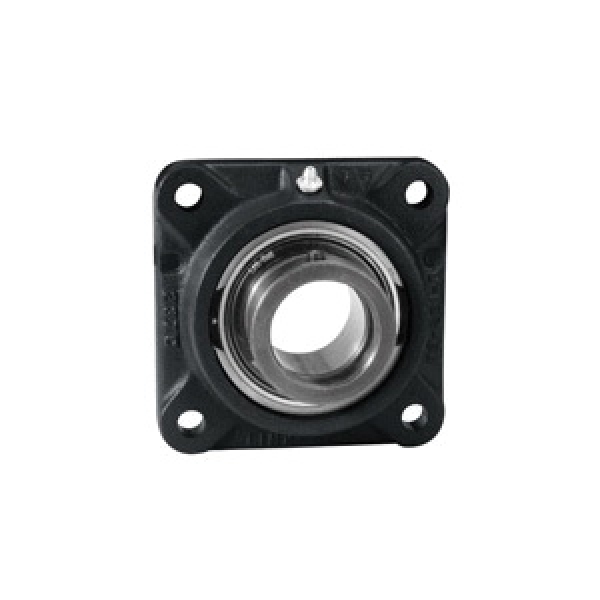

Link-Belt® F3Y220N 200 Standard Duty Flange Block Ball Bearing, 1-1/4 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 5-1/8 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 4-5/8 in OAL/Dia
- CP#:
- Item#: F3Y220N
- Mfr#: F3Y220N
- UPC: 662327037697
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Standard Duty, Series: 200, 1-1/4 in Bore, 3-5/8 in Bolt Center-to-Center Length, 5-1/8 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 4-5/8 in Overall Length/Diameter, 2-5/64 in Overall Depth, 4-5/8 in Overall Height, Eccentric Cam Collar Locking Device, Alloy Steel Bearing, 5810 lb Dynamic/3440 lb Static Load, 6850 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Series | : | 200 |
| Bolt Circle Diameter | : | 5-1/8 in |
| Bearing Material | : | Alloy Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Eccentric Cam Collar |
| Load Capacity | : | 5810 lb Dynamic/3440 lb Static |
| Maximum Speed | : | 6850 rpm |
| Overall Depth | : | 2-5/64 in |
| Overall Height | : | 4-5/8 in |
| Inside Diameter | : | 1-1/4 in |
| Overall Length/Diameter | : | 4-5/8 in |
| Mounted | : | Yes |
