F3S232E

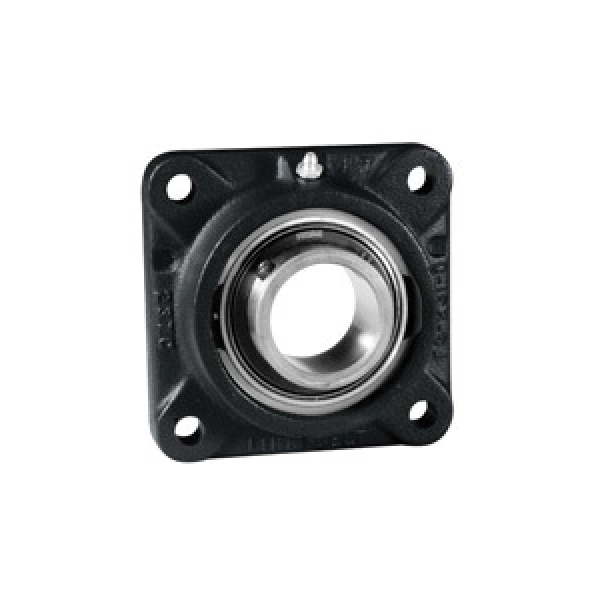

Link-Belt® F3S232E 200 Intermediate Duty Flange Block Ball Bearing, 2 in Dia Bore, 5-1/8 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 6-3/8 in OAL/Dia
- CP#:
- Item#: F3S232E
- Mfr#: F3S232E
- UPC: 662864721394
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Narrow inner ring
- Cast iron housing
- Single lip contact seal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
Link-Belt® Flange Block Ball Bearing, Intermediate Duty, Series: 200, 2 in Bore, 5-1/8 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 6-3/8 in Overall Length/Diameter, 2 in Overall Depth, 6-3/8 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 7920 lb Dynamic/5220 lb Static Load, 3600 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5-1/8 in |
| Series | : | 200 |
| Bearing Material | : | Alloy Steel |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 7920 lb Dynamic/5220 lb Static |
| Maximum Speed | : | 3600 rpm |
| Overall Depth | : | 2 in |
| Overall Height | : | 6-3/8 in |
| Inside Diameter | : | 2 in |
| Overall Length/Diameter | : | 6-3/8 in |
| Mounted | : | Yes |
