EFRB22423H

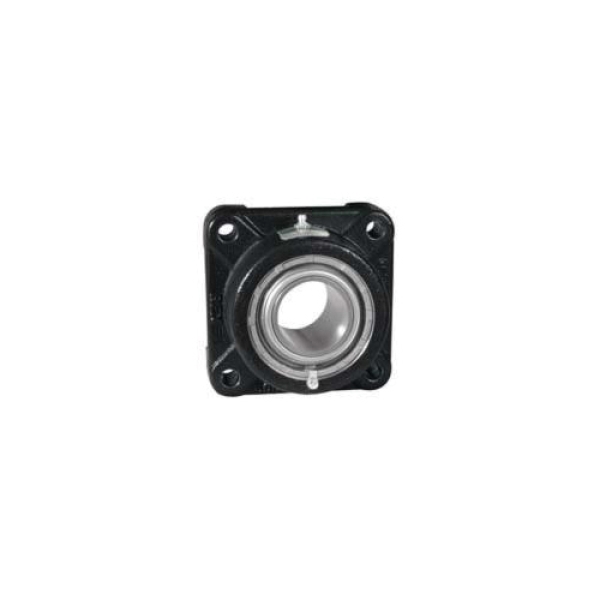

Link-Belt® EFRB22423H B22400 Type E Flanged Block Spherical Roller Bearing, 1-7/16 in Dia Bore, 3-1/2 in L Bolt Center-to-Center, 4-61/64 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 4-5/8 in OAL/Dia
- CP#:
- Item#: EFRB22423H
- Mfr#: EFRB22423H
- UPC: 662327024642
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Type H floating labyrinth seals have multiple self centering rings held securely in a steel carrier
- 4 deg misalignment capabilities
- Factory set clearance and lubrication
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Link-Belt® Flanged Block Spherical Roller Bearing, Type E, Series: B22400, 1-7/16 in Bore, 3-1/2 in Bolt Center-to-Center Length, 4-61/64 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 4-5/8 in Overall Length/Diameter, 2-31/32 in Overall Depth, 4-5/8 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, 17800 lb Dynamic/20900 lb Static Load, 3600 rpm Maximum, 225 deg F, Powder Coated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-1/2 in |
| Series | : | B22400 |
| Bolt Circle Diameter | : | 4-61/64 in |
| Bearing Material | : | Cast Iron |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Single Set Screw Collar |
| Load Capacity | : | 17800 lb Dynamic/20900 lb Static |
| Maximum Speed | : | 3600 rpm |
| Overall Depth | : | 2-31/32 in |
| Overall Height | : | 4-5/8 in |
| Inside Diameter | : | 1-7/16 in |
| Overall Length/Diameter | : | 4-5/8 in |
| Mounted | : | Yes |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_BY409302_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Warranty.pdf
