Link-Belt® B432L
Link-Belt®

Link-Belt® B432L

loading
Link-Belt®
Email Print

B432L

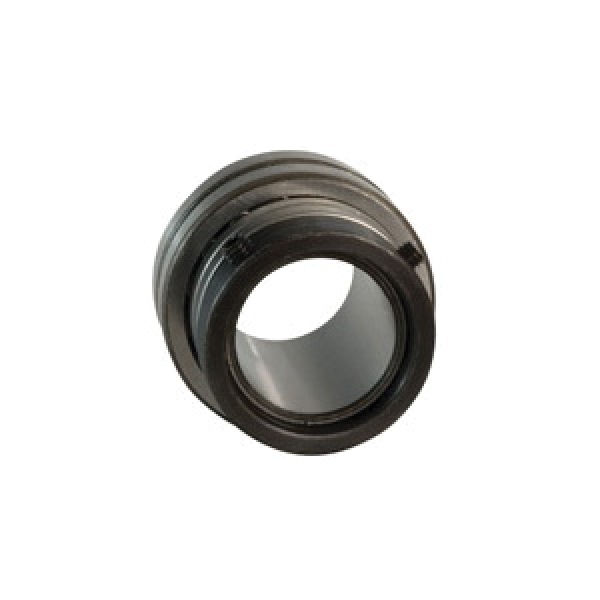

Link-Belt® B432L B22400 Unmounted Spherical Roller Bearing, 2 in Bore Dia, 3.5433 in OD, 2 Rows, 3.13 in W, 25900 lb Dynamic/33200 lb Static Load

  • Item#: B432L
  • Mfr#: B432L
  • UPC: 793699983739
  • Spring locking collar locks inner ring securely to shaft
  • Long inner ring for high stability and load support
  • Self aligning double row
  • Double contoured retainer pockets
  • Hardened spring single setscrew locking collar
  • Inner ring bore equal to a bore of preceding smaller bearing group
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Spherical Roller Bearing, Unmounted, Series: B22400, 2 in Bore Dia, 3.5433 in Outside Dia, 2 Rows, 3.13 in Width, 25900 lb Dynamic/33200 lb Static, Cast Iron Bearing, Uncoated

SPECIFICATIONS

Series      :      B22400
Bearing Material      :      Cast Iron
Finish      :      Uncoated
Load Capacity      :      25900 lb Dynamic/33200 lb Static
Outside Diameter      :      3.5433 in
Number of Rows      :      2
Inside Diameter      :      2 in
Mounted      :      Yes
Width      :      3.13 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link_Belt_B440SC_Manual.pdf
