Link-Belt® A22177
Link-Belt®

Link-Belt® A22177

loading
Link-Belt®
Email Print

A22177

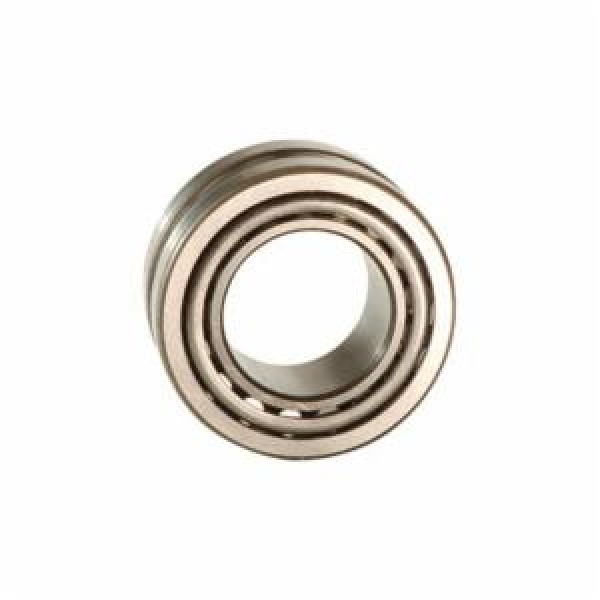

Link-Belt® A22177 A20000 Unmounted Spherical Roller Bearing, 1.7712 in Dia Bore, 3.3464 in OD, 2 Rows, 1.578 in W, 20200 lb Dynamic/28700 lb Static Load

  • Item#: A22177
  • Mfr#: A22177
  • UPC: 662327004460
  • Raceway curvatures, self-aligning
  • Roller guidance is provided by double contoured coined steel retainer pockets
  • Large rollers for extended bearing life
  • Micro finished raceways assure smooth operation
  • Separable outer rings
  • Direct shaft mounted
  • A22177 bearing number
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Link-Belt® Spherical Roller Bearing, Unmounted, Series: A20000, 1.7712 in Bore Dia, 3.3464 in Outside Dia, 2 Rows, 1.578 in W, Open Closure, 20200 lb Dynamic/28700 lb Static, Steel Cage, 4800 rpm Oil Maximum, Uncoated

SPECIFICATIONS

Series      :      A20000
Finish      :      Uncoated
Load Capacity      :      20200 lb Dynamic/28700 lb Static
Maximum Speed      :      4800 rpm Oil
Outside Diameter      :      3.3464 in
Number of Rows      :      2
Inside Diameter      :      1.7712 in
Mounted      :      No
Width      :      1.578 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_A22125_Manual.pdf
