LEESON® 116745.00
LEESON®

LEESON® 116745.00

loading
LEESON® 116745.00
LEESON®
Email Print

116745.00

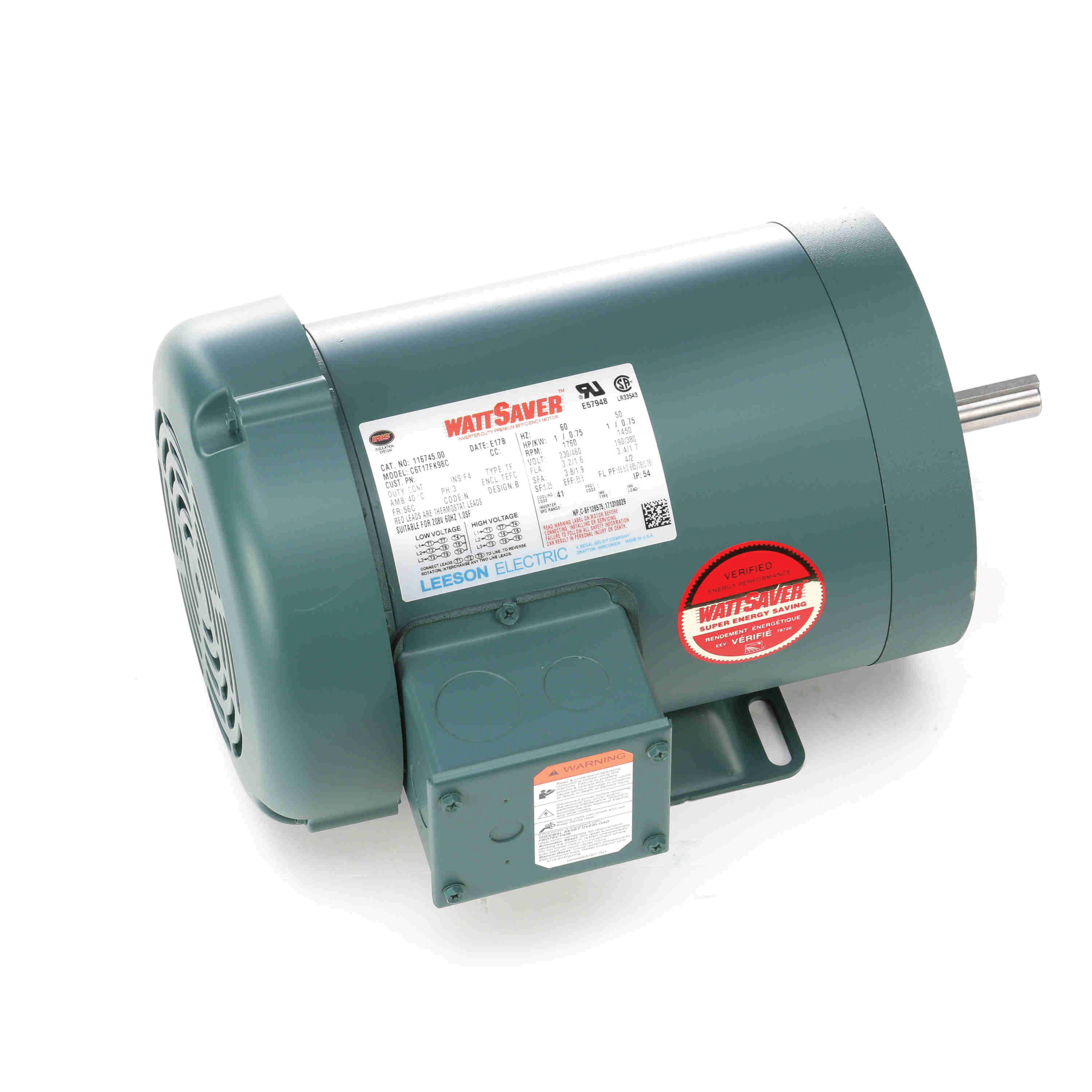

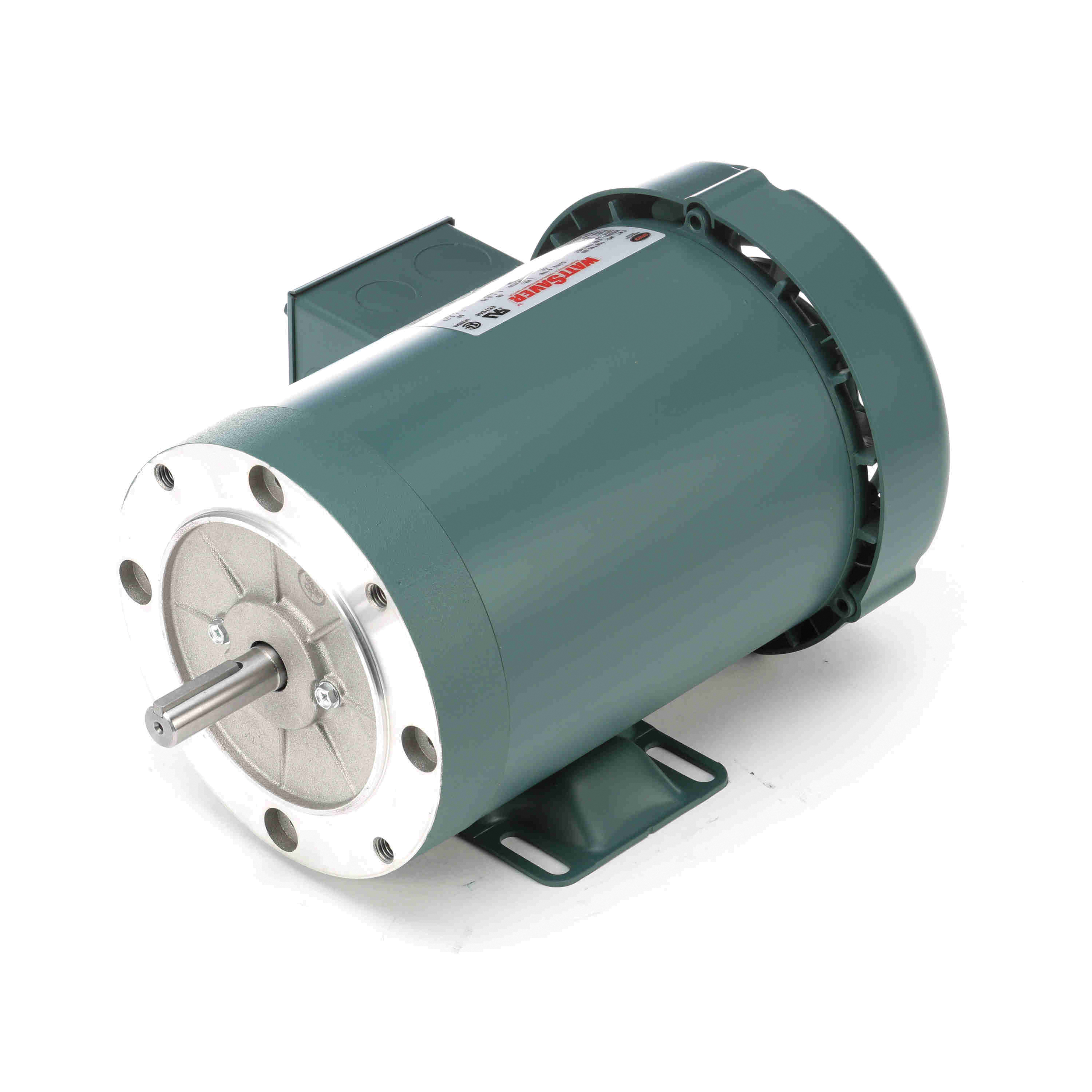

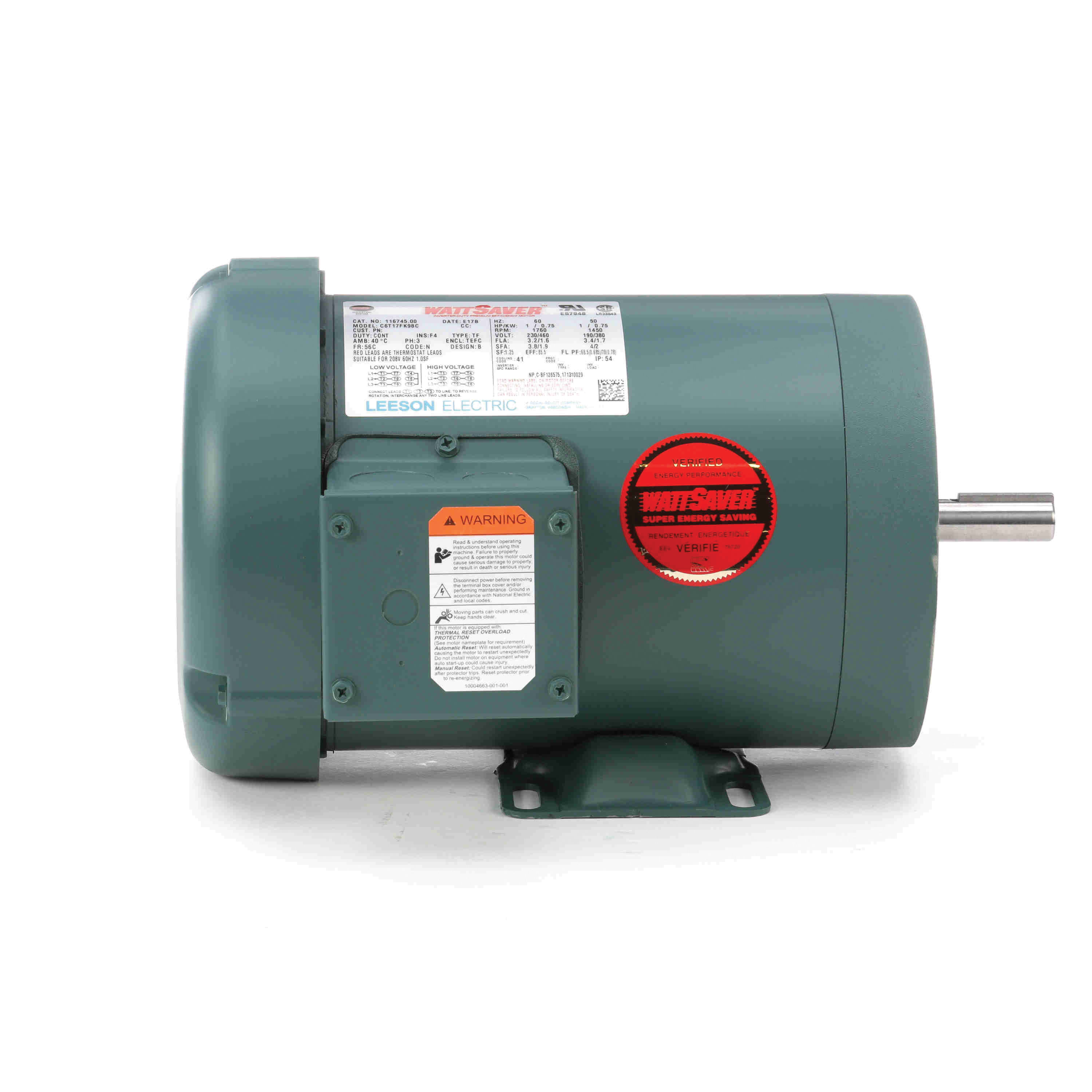

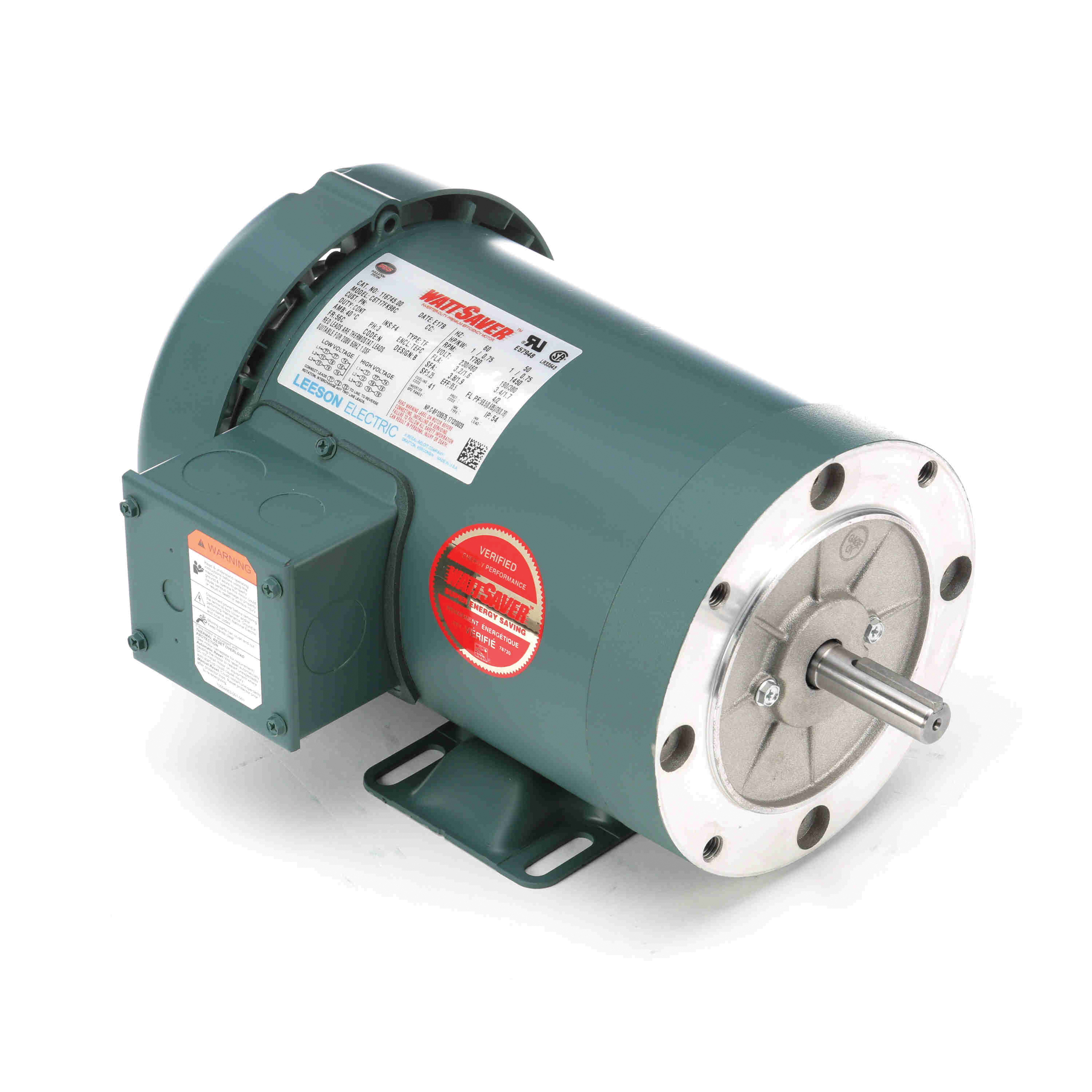

LEESON® Ultimate e® 116745.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1760 rpm Speed, C-Face/Rigid Base Mount

  • Item#: 116745LEE
  • Mfr#: 116745.00
    • Premium efficient ratings and inverter rated
    • Class B insulation systems 42, 48 and 56 frames
    • Shielded ball bearings for direct coupled applications
    • Dynamically balanced rotors
    • Torques exceed NEMA performance standards
    • WattSaver® e premium efficient motors
    • Ultimate® premium efficient motors
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 1 hp, 230/460 VAC, 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 3 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.48 in L Dimensions

SPECIFICATIONS

Horsepower      :      1 HP

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_11674500_Specification_Sheet.pdf
  • pdf
    Brochure     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Brochure.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Catalog.pdf
  • pdf
    Warranty Information     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf
  • pdf
    Instruction/Installation Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3203ZZC3_Installation_Sheet.pdf
