- LEESON® 113584.00
113584.00

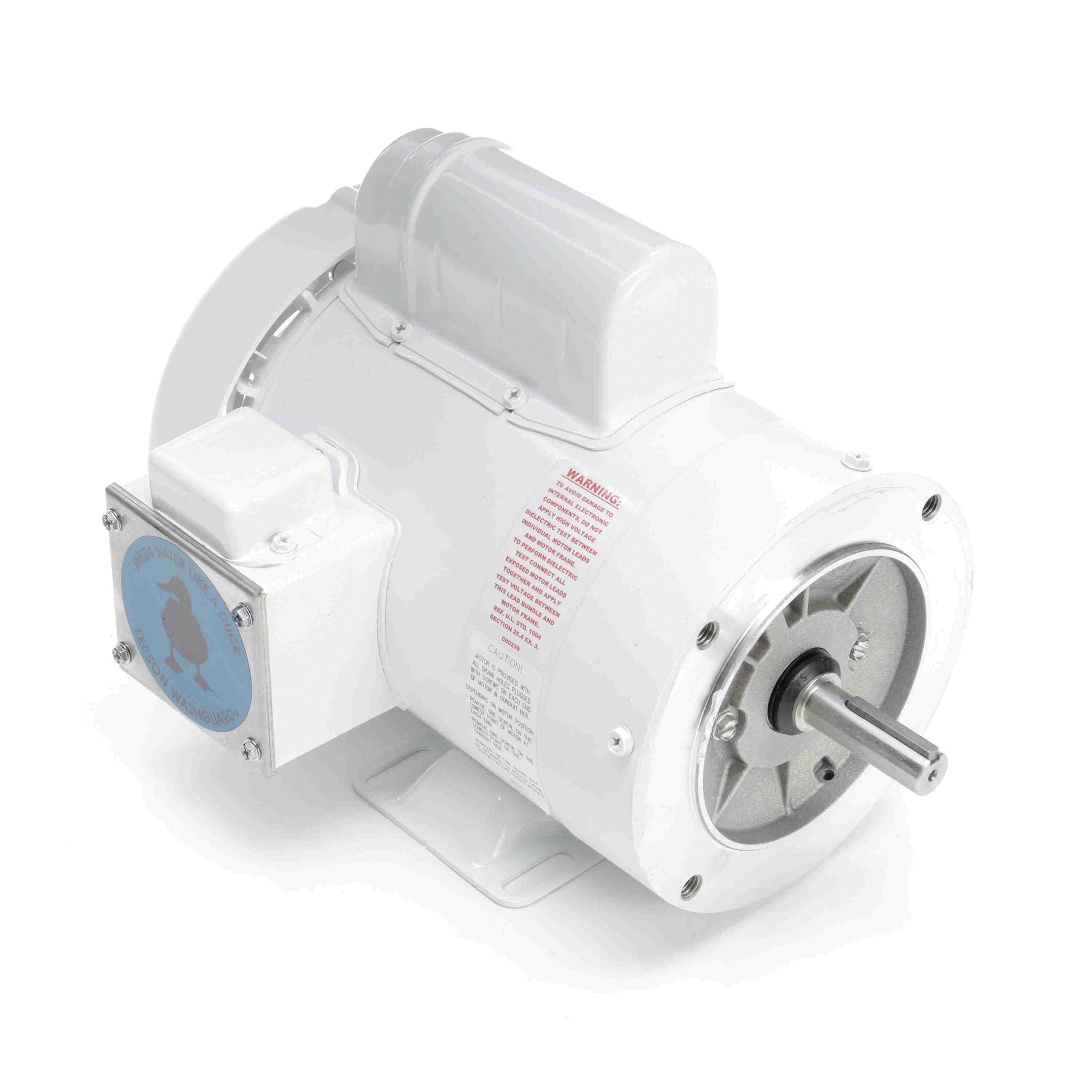

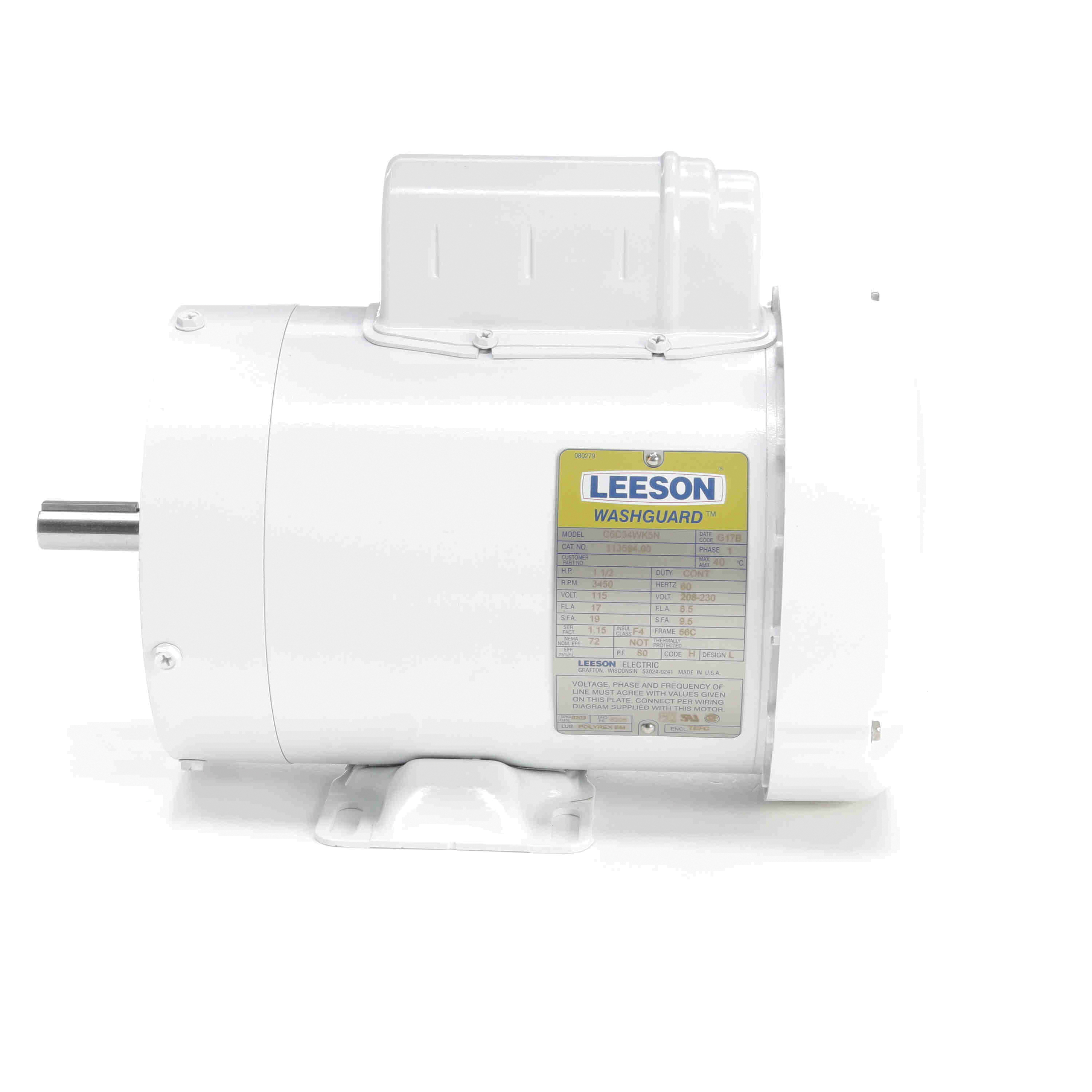

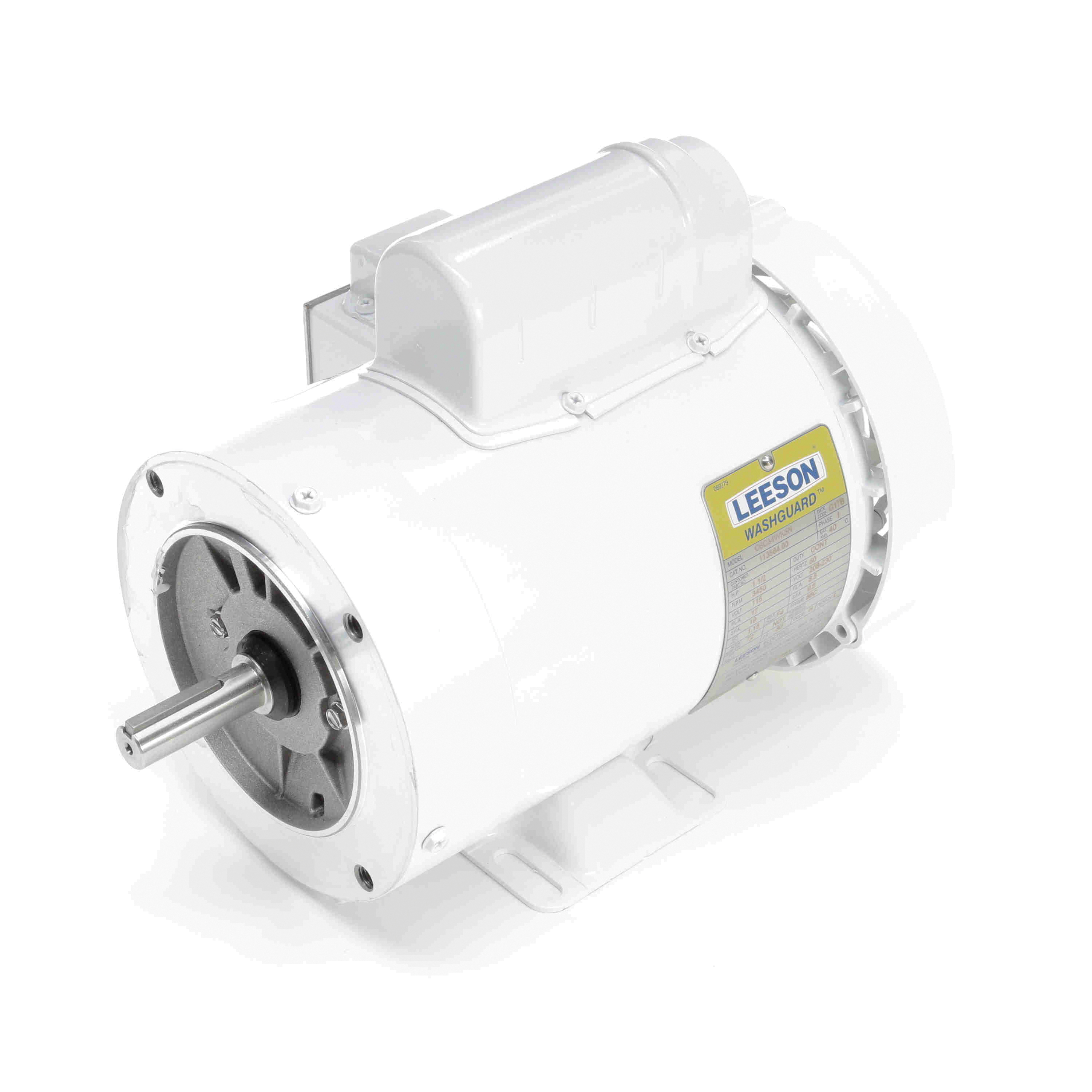

LEESON® Washguard® 113584.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 3450 rpm Speed, C-Face/Rigid Base Mount
- CP#:
- Item#: 113584LEE
- Mfr#: 113584.00
- USDA approved epoxy painted motors
- Stainless steel shaft
- NEMA motors
- Double lip contact seals and V-ring seals used for shaft seals
- Single phase motors feature an electronic solid state encapsulated switch
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 1.5 hp, 115/208 to 230 VAC, 17/8.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 2.25 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.37 in L x 8.75 in H Dimensions
SPECIFICATIONS
| Horsepower | : | 1-1/2 HP |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_10338700_Brochure_1.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_11358400_Specification_Sheet.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Brochure.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf
