107001.00

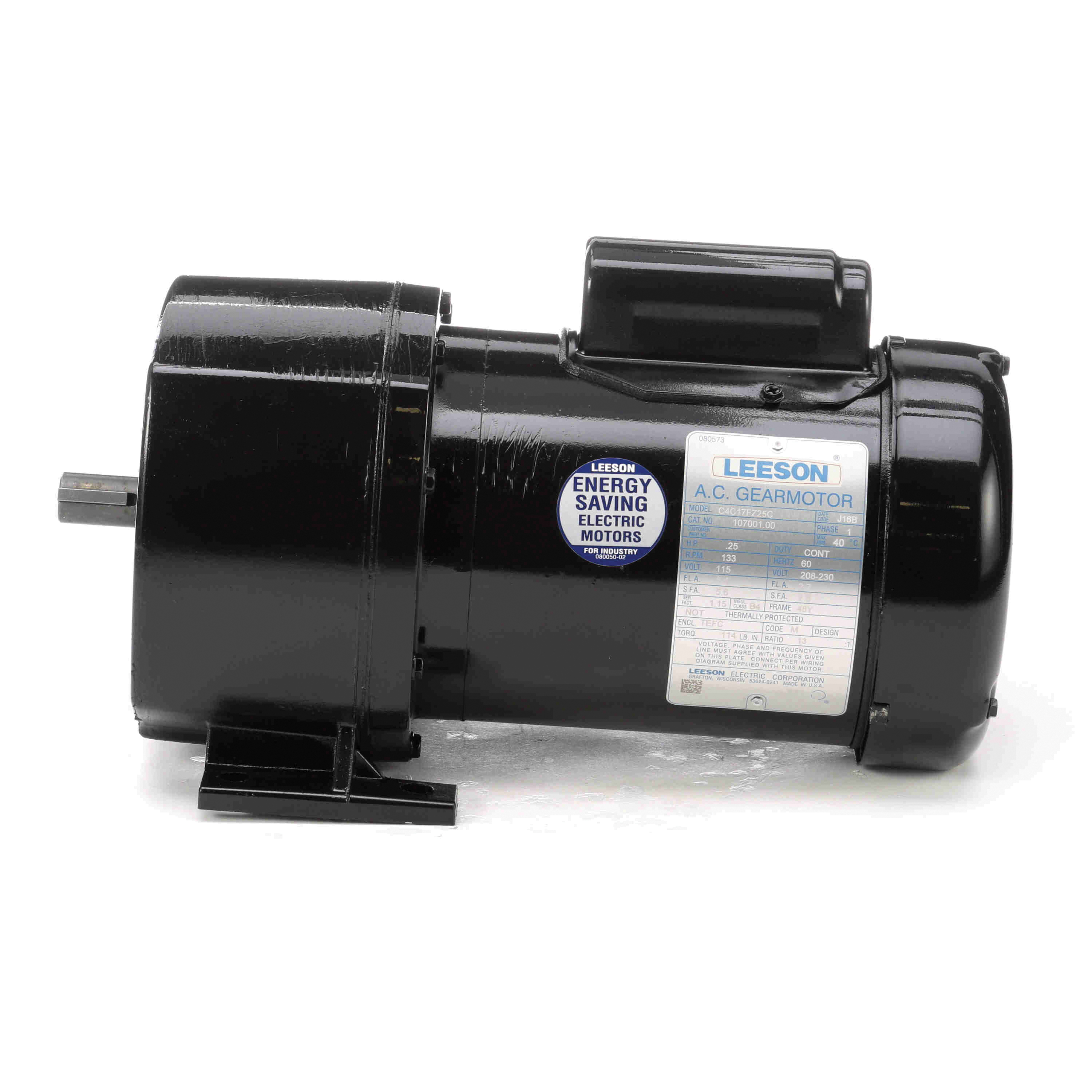

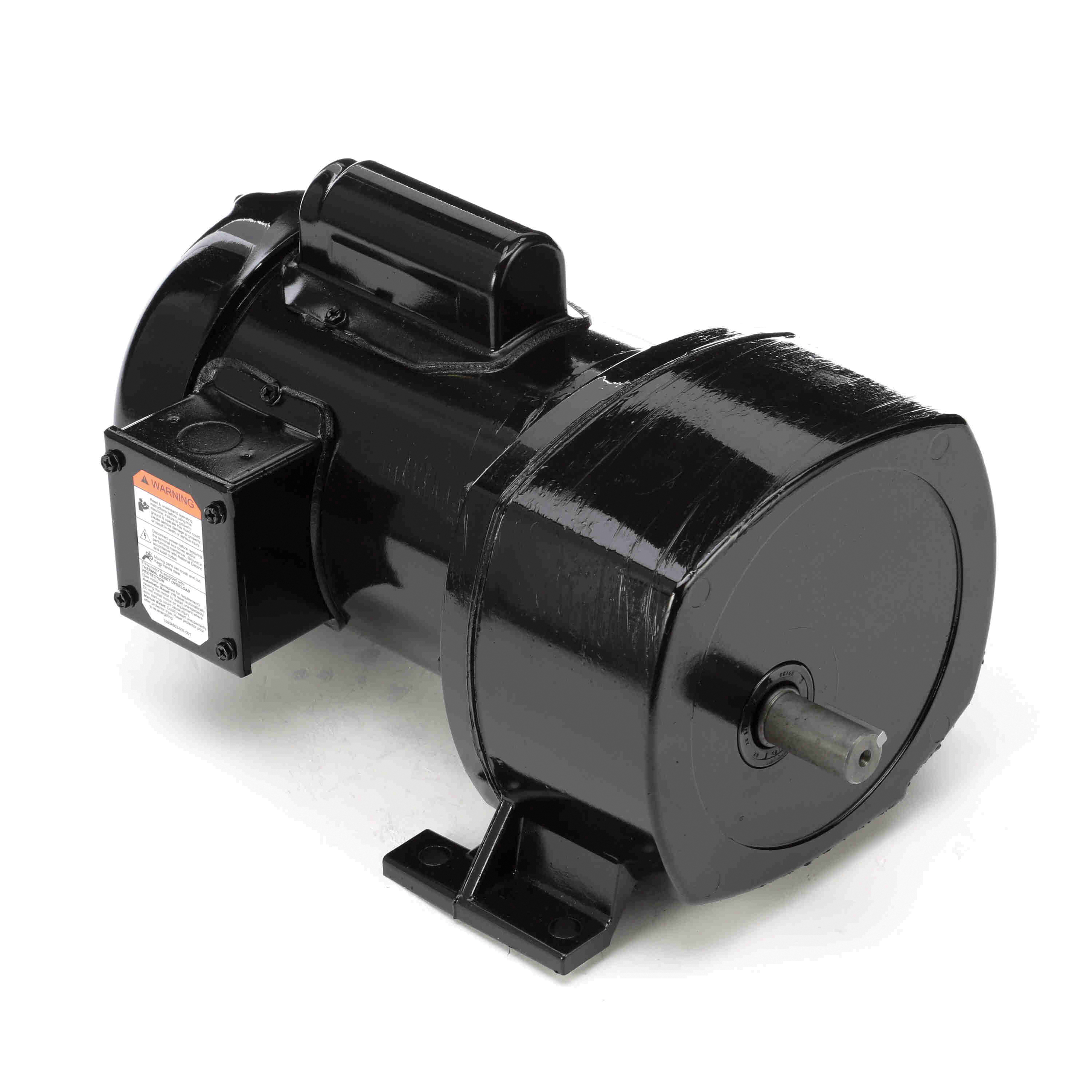

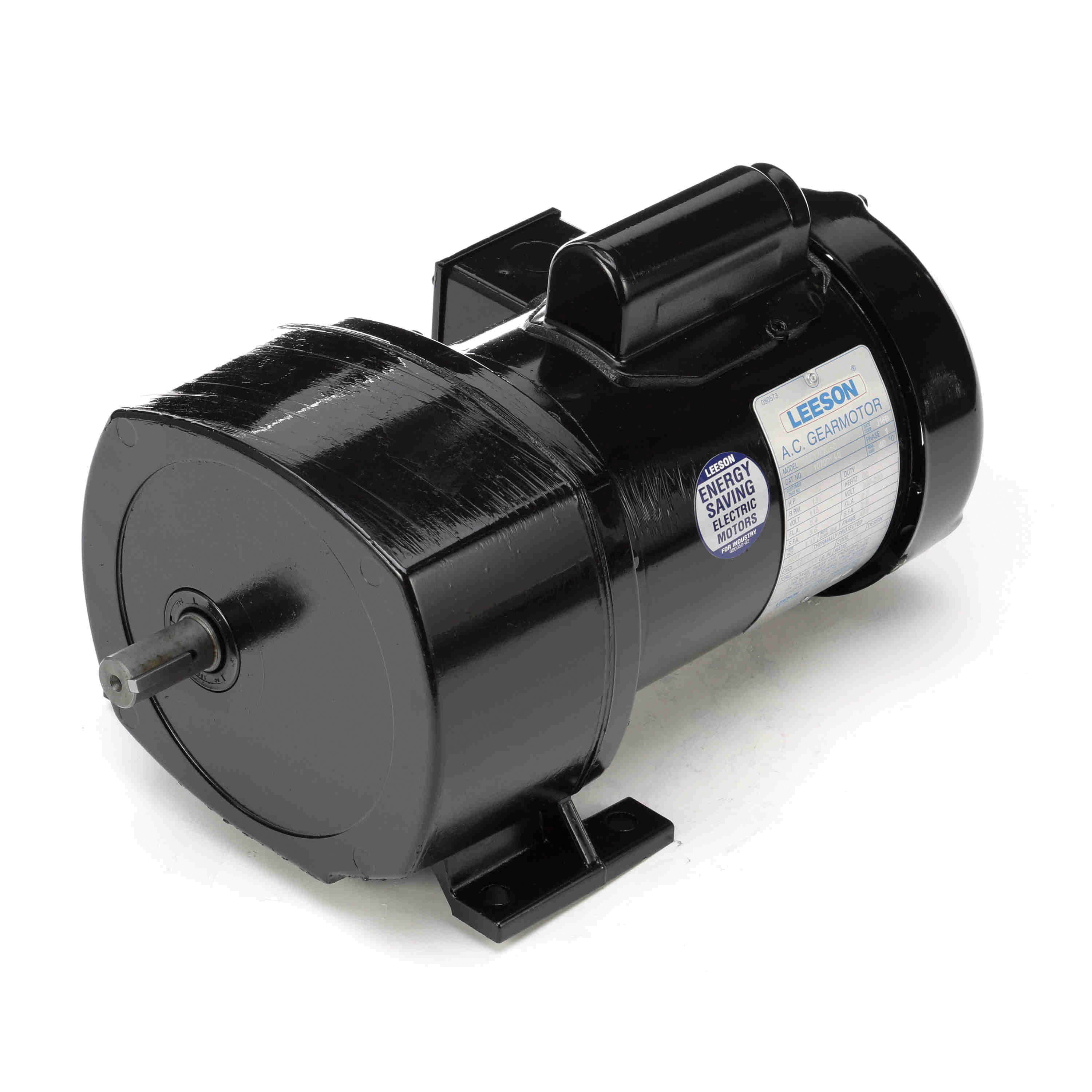

LEESON® 107001.00 P1100 Parallel Shaft Continuous Duty Gear Motor, 115/208 to 230 VAC, 0.25 hp, 13:1 Gear Ratio, 133 rpm Max, 114 in-lb Torque
- CP#:
- Item#: 107001LEE
- Mfr#: 107001.00
- Rugged die cast aluminum gear housing for maximum gear and bearing support
- Precision machined gearing and hardened for maximum load capability
- All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
- Oversized output bearings for greater overhung load capacity and long life
- High carbon alloy output shaft provides maximum strength and rigidity
- All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
- Heavy duty industrial oil seals keep lubricant in and dirt out
- Gears and bearings are splash lubricated with permanent, heavy duty gear oil
- Fractional horsepower AC motors
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P1100, 115/208 to 230 VAC, 5.4/2.7 A Full Load Amperage, 0.25 hp, 60 Hz Frequency, 1 ph, 133 rpm Maximum, 3/4 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 114 in-lb Torque, 13:1 Gear Ratio, Right-Angle Capacitor Start Motor, Ball Bearing, 525 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class B Insulation, Totally Enclosed Fan Cooled Enclosure, Die Cast Aluminum Housing Material, 13.42 in L x 8.13 in W x 7.69 in H Dimensions
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_10700100_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Catalog.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf -
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9600000_Brochure.pdf -
Instruction/Installation Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3203ZZC3_Installation_Sheet.pdf
