Koyo NK29/30A
Koyo
Email Print

NK29/30A

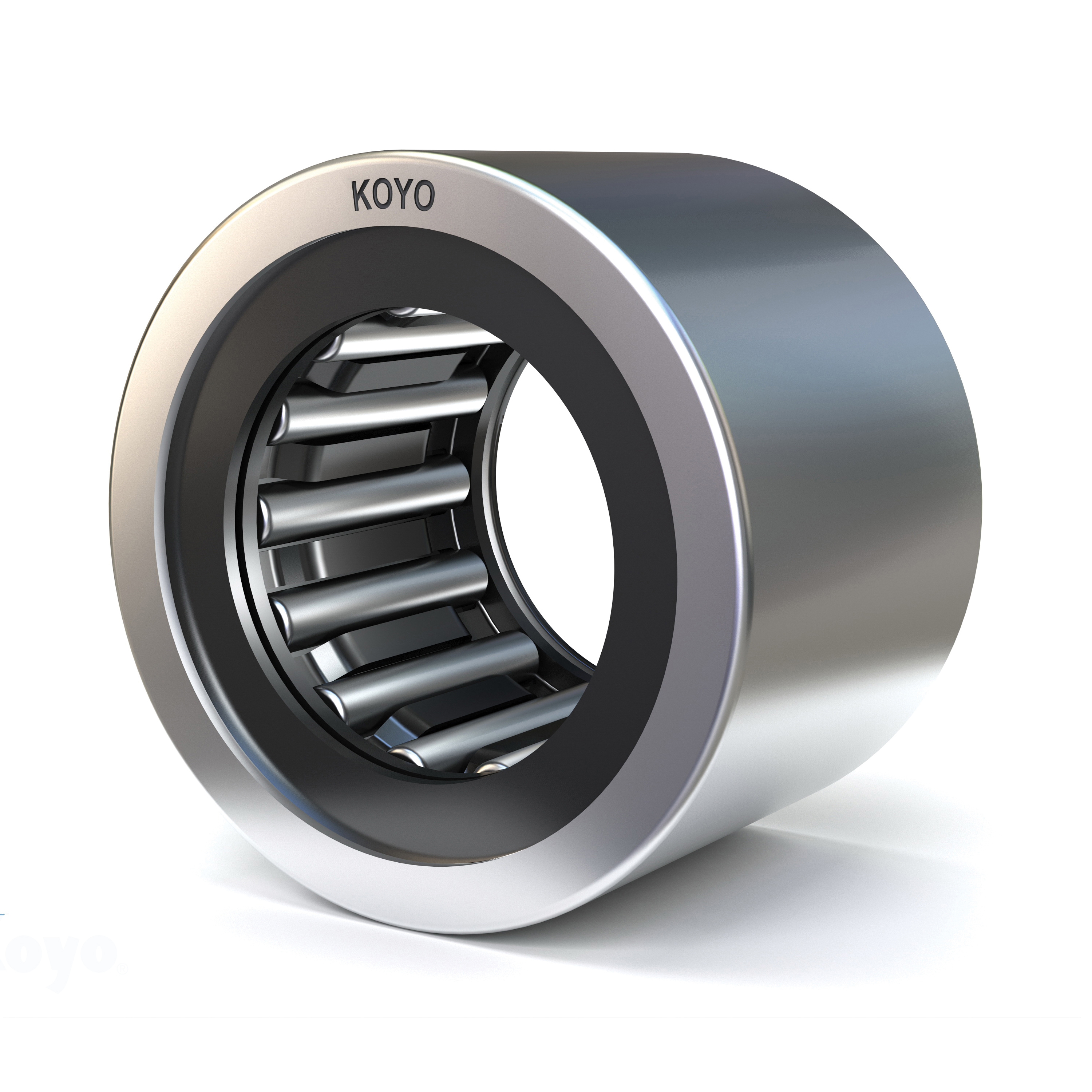

Koyo NK29/30A Metric Series Caged Heavy Duty Needle Roller Bearing, 29 mm Dia Bore, 38 mm OD, 30 mm W, 29.8 kN Dynamic/56.4 kN Static Load

  • Item#: NK29/30A
  • Mfr#: NK29/30A
  • UPC: 605790192470
    • Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section
    • Optimum speed and lubrication-retention capability
    • Without inner ring
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.

Koyo Needle Roller Bearing, Caged Heavy Duty, Series: NK Metric Series, 29 mm Bore, 38 mm OD, 30 mm Width, Open Closure, 29.8 kN Dynamic/56.4 kN Static Load, Steel Cage, 9700 rpm Grease/15000 rpm Oil Maximum, 250 deg F

SPECIFICATIONS

Series      :      NK Metric Series
Load Capacity      :      29.8 kN Dynamic/56.4 kN Static
Maximum Speed      :      9700 rpm Grease/15000 rpm Oil
Outside Diameter      :      38 mm
Width      :      30 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/729/Koyo_NATR10DZ_Catalog.pdf
