Koyo M-451
Koyo
Email Print

M-451

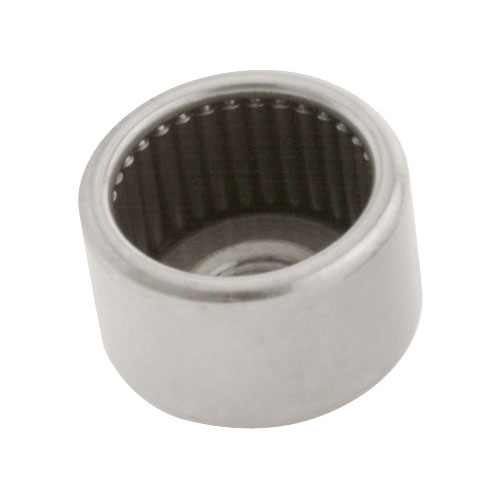

Koyo M-451 Inch Series Closed One End Round Bore Uncaged Drawn Cup Needle Roller Bearing, 1/4 in Dia Bore, 7/16 in OD, 1 Row, 5/16 in W, 800 lb Dynamic/830 lb Static Load

  • Item#: M-451
  • Mfr#: M-451
  • UPC: 605790187506
    • Full complement bearings handle high radial load carrying capability
    • Best used to provide maximum radial load capacity (full complement of rollers, no cage) for thin cross section applications
    • A hardened and machined shaft or an "IR" inner ring is required for optimal performance
    • A press fit into the housing is required
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.

Koyo Drawn Cup Needle Roller Bearing, Closed One End Round Bore Uncaged, Series: M Inch Series, 1/4 in Bore, 7/16 in OD, 1 Row, 5/16 in Width, Open Closure, 800 lb Dynamic/830 lb Static Load, Steel Bearing, 6500 rpm Grease/10000 rpm Oil Maximum, -30 to 110 deg C

SPECIFICATIONS

Series      :      M Inch Series
Bearing Material      :      Steel
Load Capacity      :      800 lb Dynamic/830 lb Static
Maximum Speed      :      6500 rpm Grease/10000 rpm Oil
Outside Diameter      :      7/16 in
Number of Rows      :      1
Width      :      5/16 in
