JT-1613

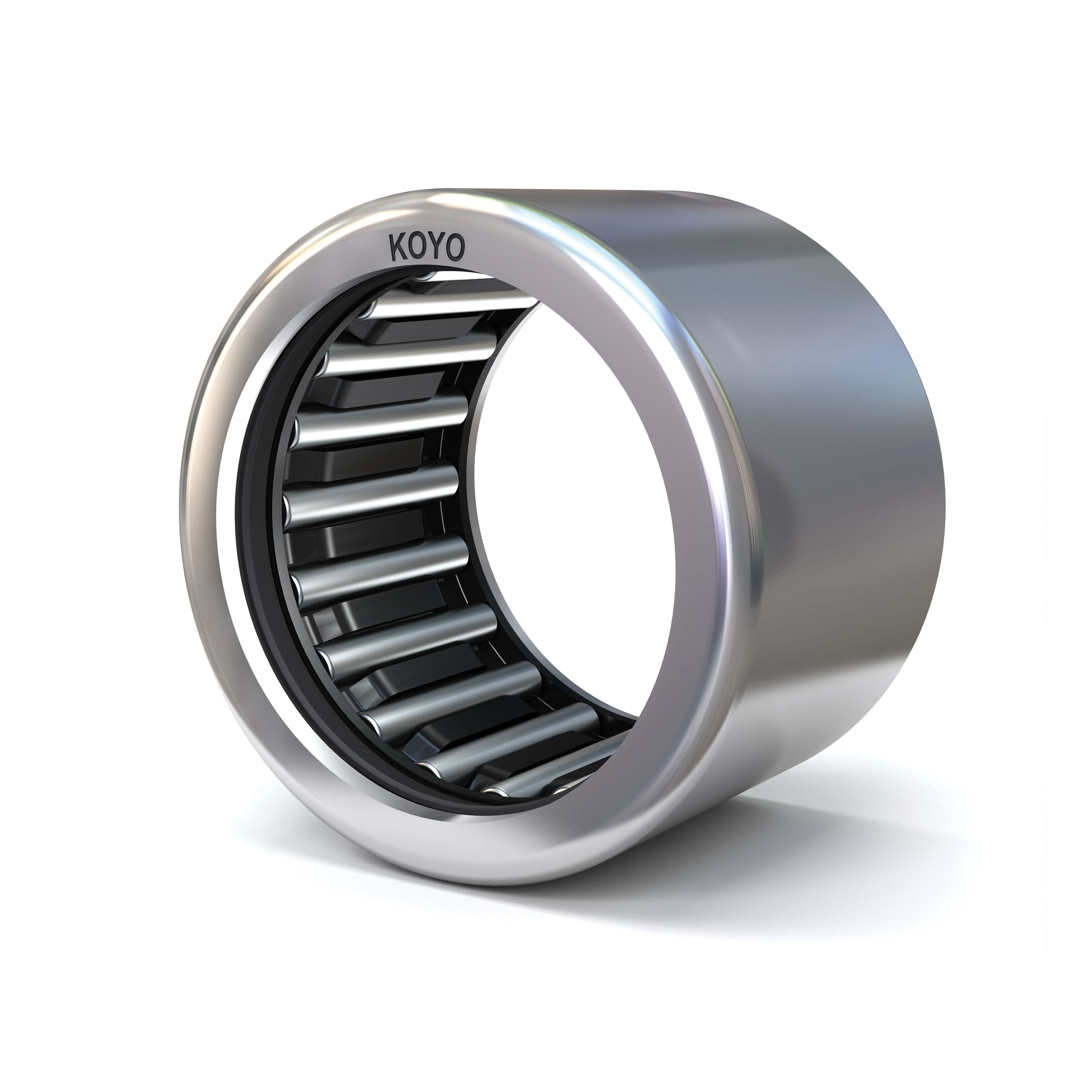

Koyo JT-1613 Inch Series Caged Open Ends Round Bore Drawn Cup Needle Roller Bearing, 1 in Dia Bore, 1-1/4 in OD, 1 Row, 13/16 in W, 4080 lb Dynamic/6480 lb Static Load
- CP#:
- Item#: JT-1613
- Mfr#: JT-1613
- UPC: 605790191633
- Caged bearings provide high speed and maximum lubricant retention capability
- Pre-packed with general purpose ball and roller bearing grease unless otherwise specified
- Speed rating based on shaft contact speed of 610 m/min
- Reduce the listed speed rating by one-half for outer ring rotation
- Best used for good radial load capacity and high speeds for thin cross section applications
- A hardened and machined shaft or an "IR" inner ring is required for optimal performance
- A press fit into the housing is required
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Caged Open Ends Round Bore, Series: JT Inch Series, 1 in Bore, 1-1/4 in OD, 1 Row, 13/16 in Width, Single Sealed Closure, 4080 lb Dynamic/6480 lb Static Load, Carbon Steel Bearing, Steel Cage, 7600 rpm Grease Maximum, -30 to 110 deg C
SPECIFICATIONS
| Series | : | JT Inch Series |
| Bearing Material | : | Carbon Steel |
| Load Capacity | : | 4080 lb Dynamic/6480 lb Static |
| Maximum Speed | : | 7600 rpm Grease |
| Outside Diameter | : | 1-1/4 in |
| Number of Rows | : | 1 |
| Width | : | 13/16 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1002/Koyo_AS1024_Catalog.pdf
