JH-1612

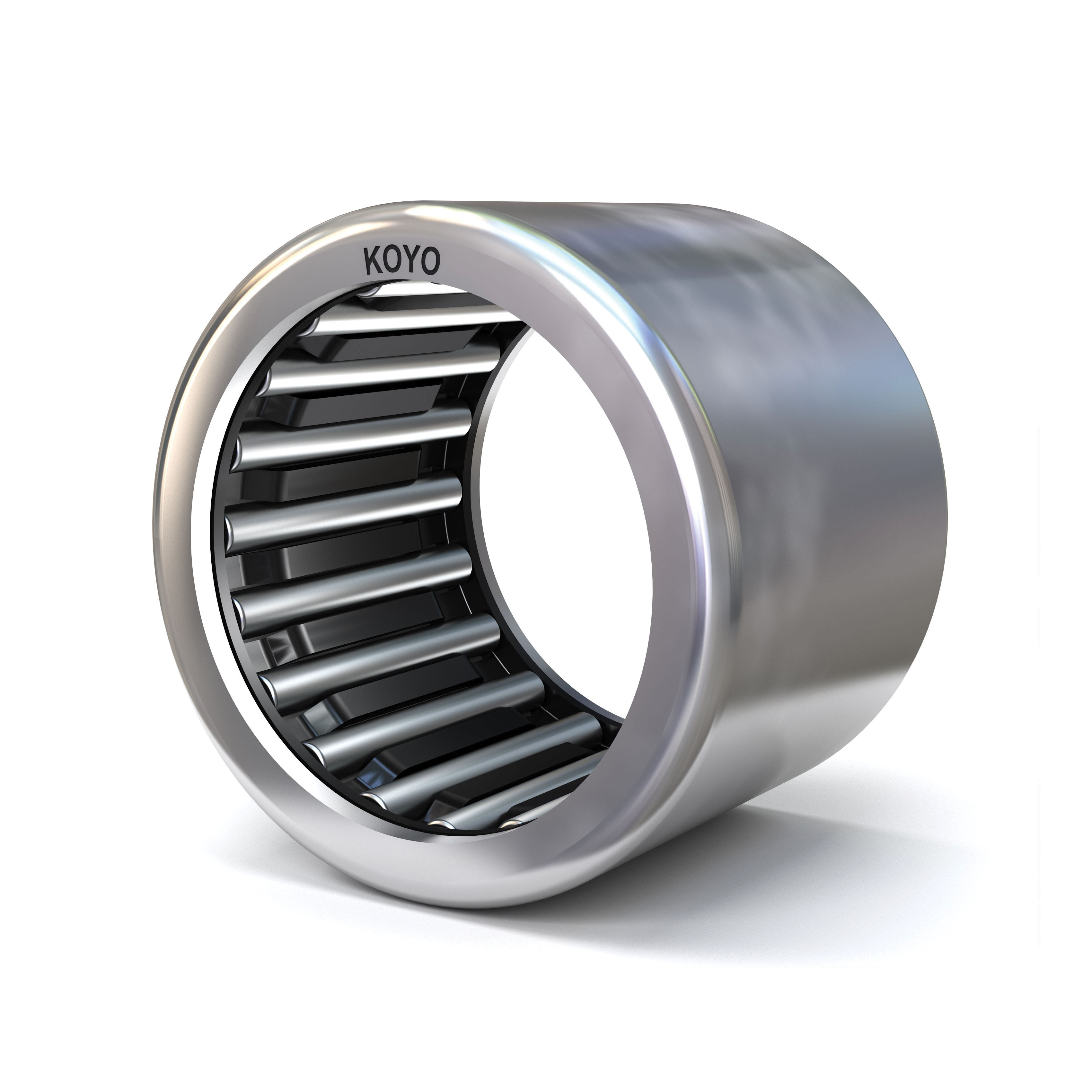

Koyo JH-1612 Inch Series Caged Heavy Duty Round Bore Open Ends Drawn Cup Needle Roller Bearing, 1 in Dia Bore, 1-5/16 in OD, 1 Row, 3/4 in W, 4650 lb Dynamic/6650 lb Static Load
- CP#:
- Item#: JH-1612
- Mfr#: JH-1612
- UPC: 605790208485
- Caged bearings provide high speed and maximum lubricant retention capability
- Best used for good radial load capacity and high speeds for thin cross section applications
- A hardened and machined shaft or an "IR" inner ring is required for optimal performance
- A press fit into the housing is required
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Caged Heavy Duty Round Bore Open Ends, Series: JH Inch Series, 1 in Bore, 1-5/16 in OD, 1 Row, 3/4 in Width, Open Closure, 4650 lb Dynamic/6650 lb Static Load, Carbon Steel Bearing, Steel Cage, 8500 rpm Grease/13000 rpm Oil Maximum, -30 to 110 deg C
SPECIFICATIONS
| Series | : | JH Inch Series |
| Bearing Material | : | Carbon Steel |
| Load Capacity | : | 4650 lb Dynamic/6650 lb Static |
| Maximum Speed | : | 8500 rpm Grease/13000 rpm Oil |
| Outside Diameter | : | 1-5/16 in |
| Number of Rows | : | 1 |
| Width | : | 3/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1002/Koyo_AS1024_Catalog.pdf
