J-78

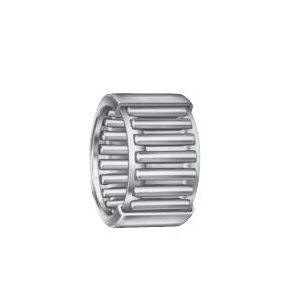

Koyo J-78 J Series Open End Drawn Cup Needle Roller Bearing, 7/16 in Dia Bore, 5/8 in OD, 1/2 in W, 1720 lb Load
- CP#:
- Item#: J-78
- Mfr#: J-78
- UPC: 605790195556
- 1430 lb dynamic/1720 lb static load
- Full complement bearings handle high radial load carrying capability
- Caged bearings provide high speed and maximum lubricant retention capability
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway to the rollers. The small cross-section of the drawn cup bearing provides high load-carrying capability with minimum required space, drawn cup bearings are easily installed with a press fit in the housing.
Koyo Drawn Cup Needle Roller Bearing, Open End, Series: J Series, 7/16 in Bore, 5/8 in OD, 1/2 in Width, 1720 lb Load, Steel Bearing, Steel Cage, 17000 rpm Grease/26000 rpm Oil Maximum, -25 to 225 deg F
SPECIFICATIONS
| Series | : | J Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 1720 lb |
| Maximum Speed | : | 17000 rpm Grease/26000 rpm Oil |
| Outside Diameter | : | 5/8 in |
| Width | : | 1/2 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/Koyo_NA2262RS_Catalog.pdf
