Koyo
HJ-162416RS

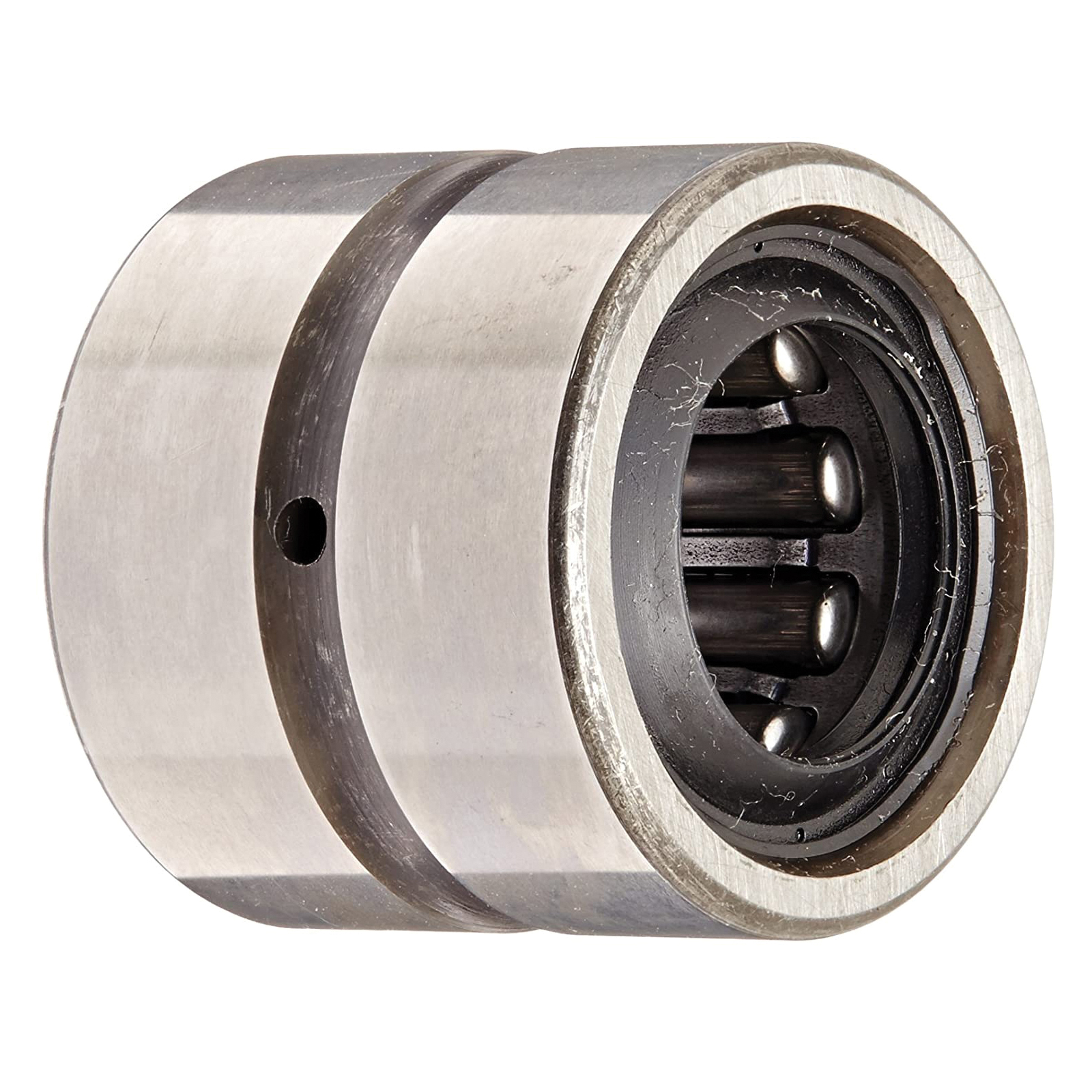

Koyo HJ-162416RS Inch Series Caged Heavy Duty Needle Roller Bearing, 1 in Dia Bore, 1-1/2 in OD, 1 in W, 5680 lbf Dynamic/7300 lbf Static Load
- Item#: HJ-162416RS
- Mfr#: HJ-162416RS
- UPC: 605790216398
- Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section
- Optimum speed and lubrication-retention capability
- Without inner ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.
Koyo Needle Roller Bearing, Caged Heavy Duty, Series: HJ Inch Series, 1 in Bore, 1-1/2 in OD, 1 in Width, Contact Single Sealed Closure, 5680 lbf Dynamic/7300 lbf Static Load, Steel Cage, 7600 rpm Maximum, -25 to 225 deg F
SPECIFICATIONS
| Cage Material | : | Steel |
| Closure Type | : | Contact Single Sealed |
| Load Capacity | : | 5680 lbf Dynamic/7300 lbf Static |
| Maximum Speed | : | 7600 rpm |
| Outside Diameter | : | 1-1/2 in |
| Duty Type | : | Heavy |
| Inside Diameter | : | 1 in |
| Temperature Rating | : | -25 to 225 deg F |
| Mounted | : | No |
| Measurement System | : | Imperial |
| Width | : | 1 in |
