Koyo B-2016-OH
Koyo
Email Print

B-2016-OH

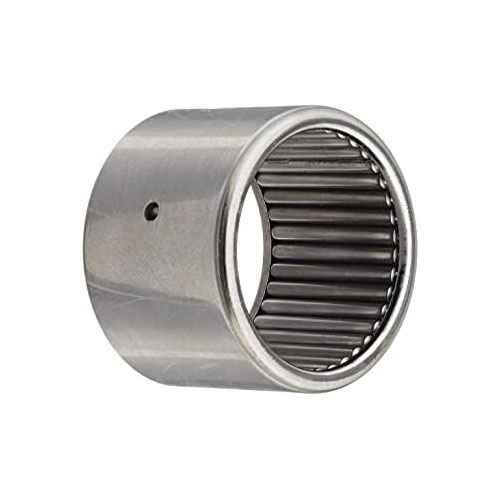

Koyo B-2016-OH Inch Series Open Ends Round Bore Uncaged Drawn Cup Needle Roller Bearing With Oil Hole, 1-1/4 in Dia Bore, 1-1/2 in OD, 1 Row, 1 in W, 8590 lb Dynamic/20840 lb Static Load

  • Item#: B-2016-OH
  • Mfr#: B-2016-OH
  • UPC: 605790206740
    • Full complement bearings handle high radial load carrying capability
    • Best used to provide maximum radial load capacity (full complement of rollers, no cage) for thin cross section applications
    • A hardened and machined shaft or an "IR" inner ring is required for optimal performance
    • A press fit into the housing is required
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.

Koyo Drawn Cup Needle Roller Bearing, Open Ends Round Bore Uncaged, Series: B Inch Series, 1-1/4 in Bore, 1-1/2 in OD, 1 Row, 1 in Width, Open Closure, 8590 lb Dynamic/20840 lb Static Load, Steel Bearing, 2300 rpm Grease/3500 rpm Oil Maximum, -30 to 110 deg C

SPECIFICATIONS

Series      :      B Inch Series
Bearing Material      :      Steel
Load Capacity      :      8590 lb Dynamic/20840 lb Static
Maximum Speed      :      2300 rpm Grease/3500 rpm Oil
Outside Diameter      :      1-1/2 in
Number of Rows      :      1
Width      :      1 in
