Koyo 63/28C3
Koyo
Email Print

63/28C3

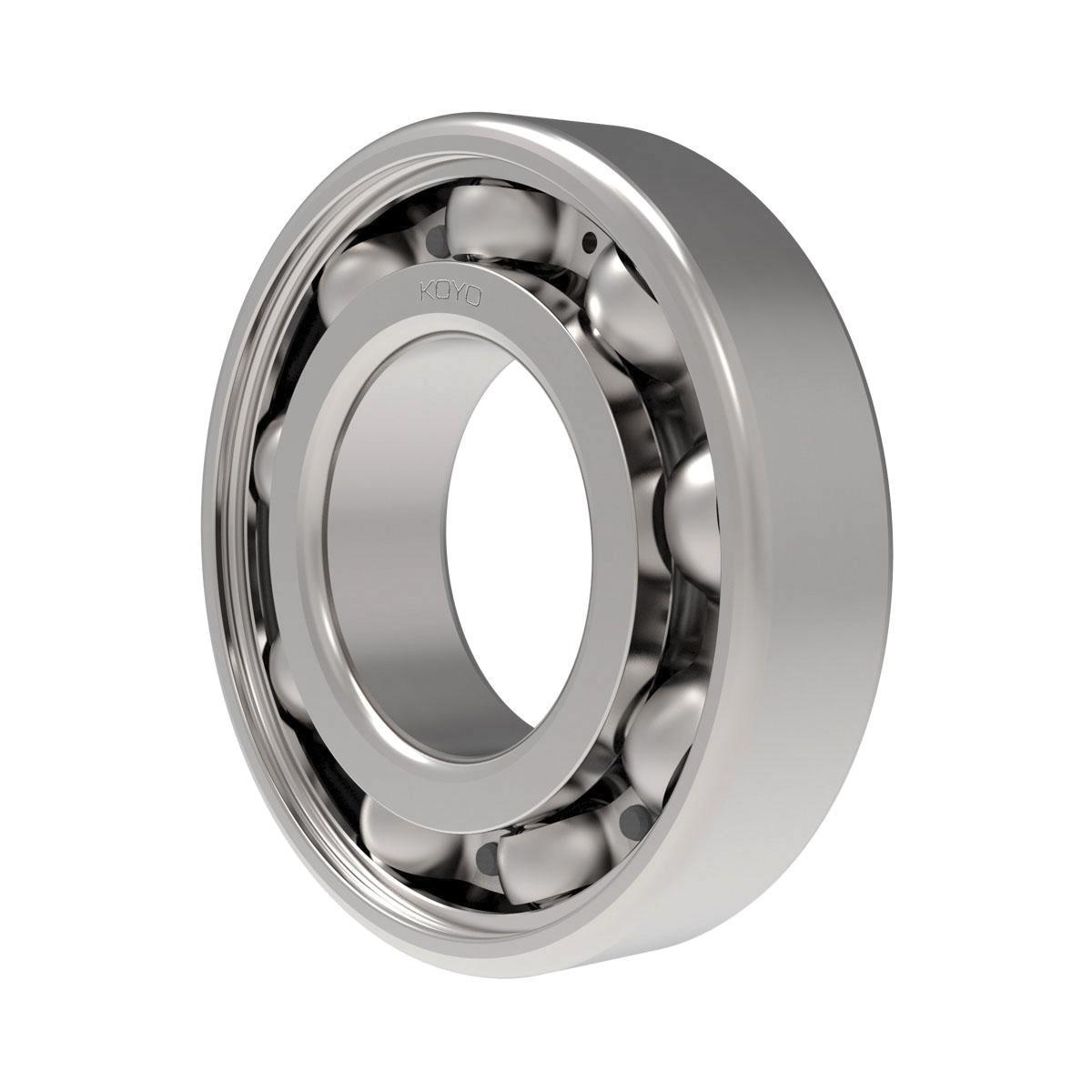

Koyo 63/28C3 Caged Round Bore Deep Groove Ball Bearing, 28 mm Dia Bore, 68 mm OD, 1 Row, 18 mm W, 29.4 kN Dynamic/13.1 kN Static Load

  • Item#: 63/28KOY
  • Mfr#: 63/28C3
  • UPC: 605790071263
    • Best used for moderate radial and low axial load applications
    • Made from premium high carbon chrome Japanese steel
    • The most popular types among rolling bearings, widely used in a variety of industries
    • Suitable for operation at high speed, with low noise and low vibration
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With its wide dimensional scope, the Deep Groove Ball Bearing is the most commonly used rolling bearing and is capable of simultaneously receiving a radial load and bidirectional axial load to a certain extent.

Koyo Deep Groove Ball Bearing, Caged Round Bore, Series: 6300 Series, 28 mm Bore, 68 mm OD, 1 Row, 18 mm Width, Open Closure, 29.4 kN Dynamic/13.1 kN Static Load, High Carbon Chrome Steel Bearing, Steel Cage, 10000 rpm Grease/12000 rpm Oil Maximum, -30 to 120 deg C

SPECIFICATIONS

Series      :      6300 Series
Bearing Material      :      High Carbon Chrome Steel
Load Capacity      :      29.4 kN Dynamic/13.1 kN Static
Maximum Speed      :      10000 rpm Grease/12000 rpm Oil
Outside Diameter      :      68 mm
Number of Rows      :      1
Width      :      18 mm
