Koyo 63/222RSC3
Koyo
Email Print

63/222RSC3

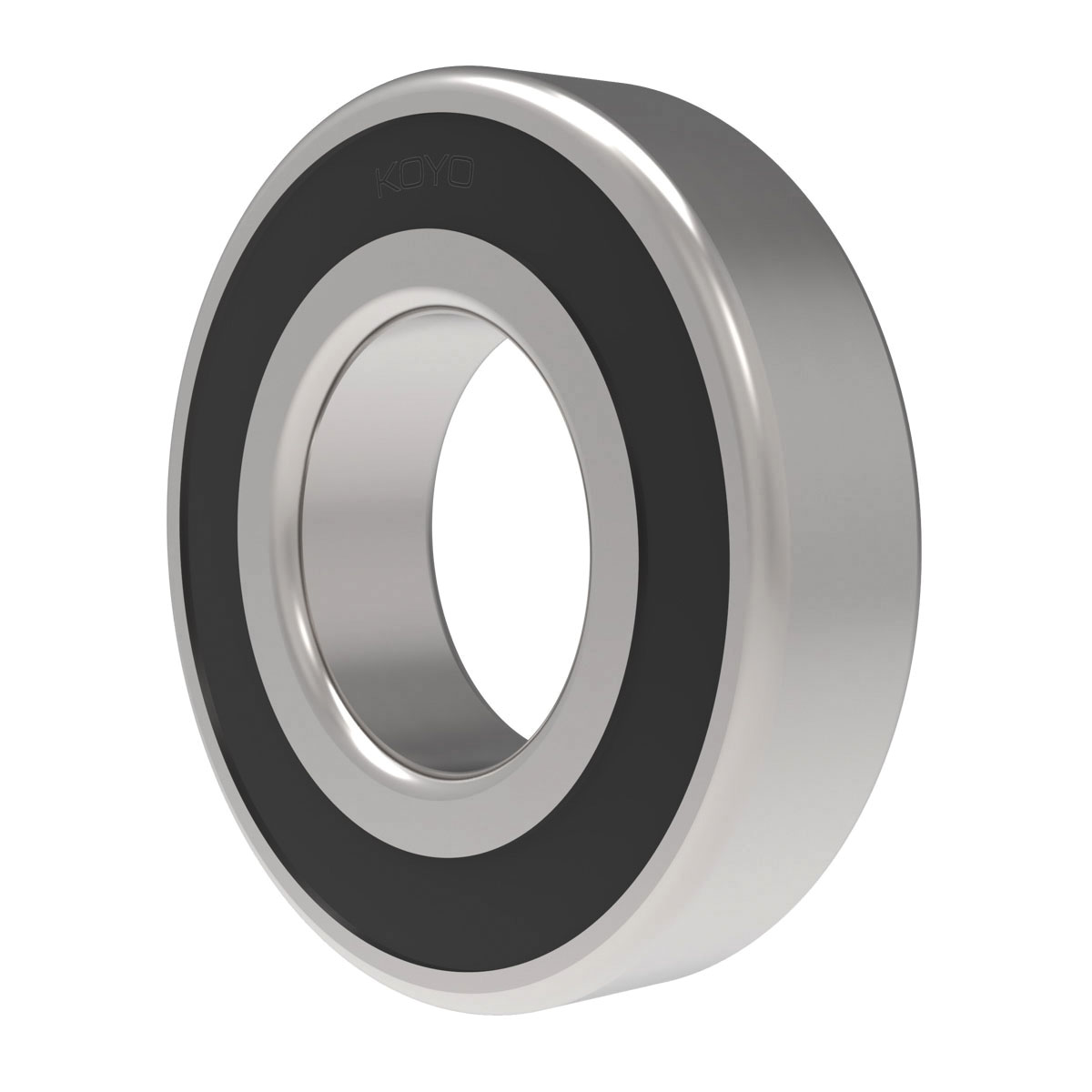

Koyo 63/222RSC3 Caged Round Bore Deep Groove Ball Bearing, 22 mm Dia Bore, 56 mm OD, 1 Row, 16 mm W, 23.1 kN Dynamic/9.4 kN Static Load

  • Item#: 63/22 2RSKOY
  • Mfr#: 63/222RSC3
  • UPC: 605790071126
    • Best used for moderate radial and low axial load applications
    • Made from premium high carbon chrome Japanese steel
    • Double sealed product come with polyrex XM grease
    • The most popular types among rolling bearings, widely used in a variety of industries
    • Suitable for operation at high speed, with low noise and low vibration
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

With its wide dimensional scope, the Deep Groove Ball Bearing is the most commonly used rolling bearing and is capable of simultaneously receiving a radial load and bidirectional axial load to a certain extent.

Koyo Deep Groove Ball Bearing, Caged Round Bore, Series: 6300 Series, 22 mm Bore, 56 mm OD, 1 Row, 16 mm Width, Double Seal Closure, 23.1 kN Dynamic/9.4 kN Static Load, High Carbon Chrome Steel Bearing, Rubber Seal, Steel Cage, 8600 rpm Grease Maximum, -30 to 100 deg C

SPECIFICATIONS

Series      :      6300 Series
Bearing Material      :      High Carbon Chrome Steel
Load Capacity      :      23.1 kN Dynamic/9.4 kN Static
Maximum Speed      :      8600 rpm Grease
Outside Diameter      :      56 mm
Number of Rows      :      1
Seal Material      :      Rubber
Width      :      16 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1002/Koyo_16004C3_Catalog.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/729/Koyo_5203_Catalog.pdf
