6219 2RS

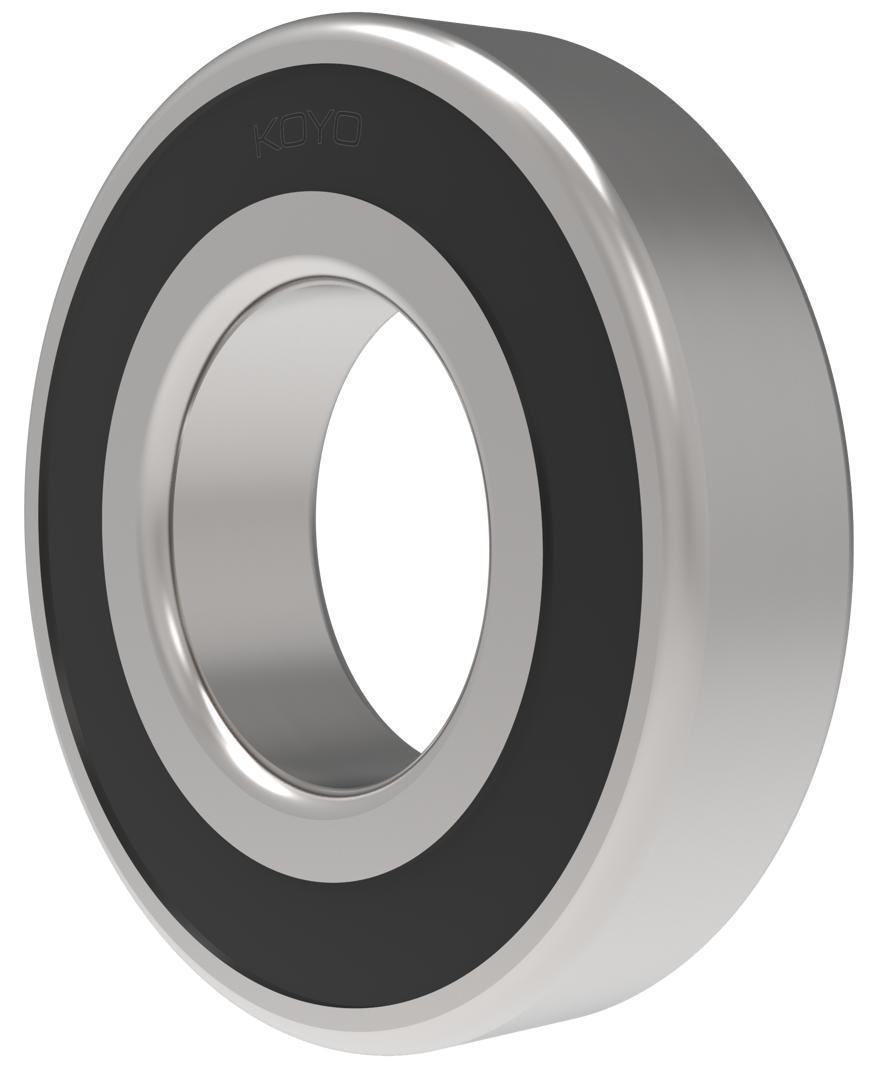

Koyo 6219 2RS 62 Series Caged Cylindrical Bore Light Deep Groove Ball Bearing, 95 mm Dia Bore, 170 mm Dia Outside, 1 Rows, 32 mm W, 136 kN Dynamic/81.9 kN Static Load
- CP#:
- Item#: 6219 2RSKOY
- Mfr#: 6219 2RS
- UPC: 605790068850
- All double sealed and double shielded product come with Polyrex XM Grease
- Available in max capacity or special heat treat (RSH2 in suffix)
- Available in miniature (EE) inch product
- Available with cermamic balls (3NCH or 3NC in prefix)
- Available with seals (2RD, 2RS, 2RU), shields (ZZ), open and/or with a snap ring (NR) options
- Available with steel (no callout) or brass (FY) cage
- Made from premium high carbon, high chromium Japanese steel
- The 2RD Seal is used for high speed and/or reduced drag applications in addition to applications that require maximum sealing ability
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Koyo, 6219 2RS, Deep Groove Ball Bearing, Caged Cylindrical Bore Light, Series: 62 Series, 95 mm Bore, 170 mm OD, 1 Rows, 32 mm Width, Contact Double Sealed Closure, 136 kN Dynamic/81.9 kN Static Load, Pressed Steel Cage, 2400 rpm Grease Maximum, -30 to 100 deg C
SPECIFICATIONS
| Series | : | 62 Series |
| Bearing Material | : | Steel |
| Load Capacity | : | 136 kN Dynamic/81.9 kN Static |
| Maximum Speed | : | 2400 rpm Grease |
| Outside Diameter | : | 170 mm |
| Number of Rows | : | 1 |
| Width | : | 32 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/729/Koyo_5203_Catalog.pdf
