KA050XP0

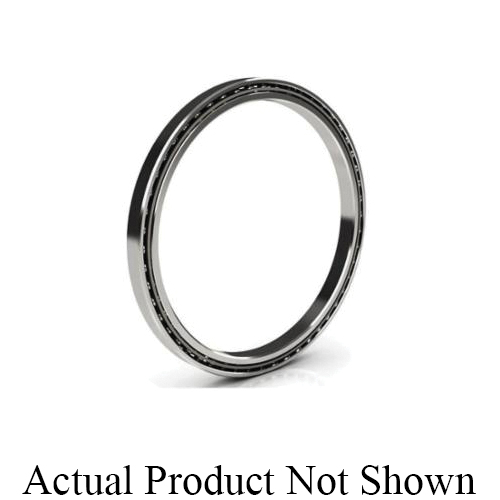

Kaydon® Bearings Reali-Slim® KA050XP0 KA Series Four-Point Contact Type X Precision Thin Section Ball Bearing, 5 in Dia Bore, 5-1/2 in OD, 1 Row, 1/4 in W, 859 lb Radial Dynamic/1400 lb Thrust Dynamic/1590 lb Radial Static/3980 lb Thrust Static Load
- CP#:
- Item#: KA050XPO
- Mfr#: KA050XP0
- UPC: 662729169705
- A conrad assembled bearing designed for applications involving multiple loads
- Unique internal geometry permits application of radial load, thrust load in either direction and moment load individually or in any combination
- A single four-point contact bearing may replace two bearings in many applications
- One piece formed ring with "snap-over" pockets
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Kaydon® Reali-Slim® bearings offer a wide variety of bearing solutions for even the most unique design challenges. Each Reali-Slim® ball bearing series is based on a single cross section which remains constant as the bore diameter is increased (in sharp contrast to standard bearings, in which the cross section increases as the bore diameter increases). By using the same series of Reali-Slim® bearings throughout a product line, the designer can standardize on common components.
Kaydon® Bearings Reali-Slim® Precision Thin Section Ball Bearing, Four-Point Contact Type X, Series: KA Series, 5 in Bore Dia, 5-1/2 in Outside Dia, 1 Row, 1/4 in W, Open Closure, 859 lb Radial Dynamic/1400 lb Thrust Dynamic/1590 lb Radial Static/3980 lb Thrust Static, AISI 52100 Steel Bearing, Brass/Non-Metallic Composite Cage, -65 to 250 deg F, Uncoated
SPECIFICATIONS
| Series | : | KA Series |
| Bearing Material | : | AISI 52100 Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 859 lb Radial Dynamic/1400 lb Thrust Dynamic/1590 lb Radial Static/3980 lb Thrust Static |
| Outside Diameter | : | 5-1/2 in |
| Number of Rows | : | 1 |
| Width | : | 1/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/124/Kaydon_Bearings_JA020CP0_Catalog.pdf
