102057

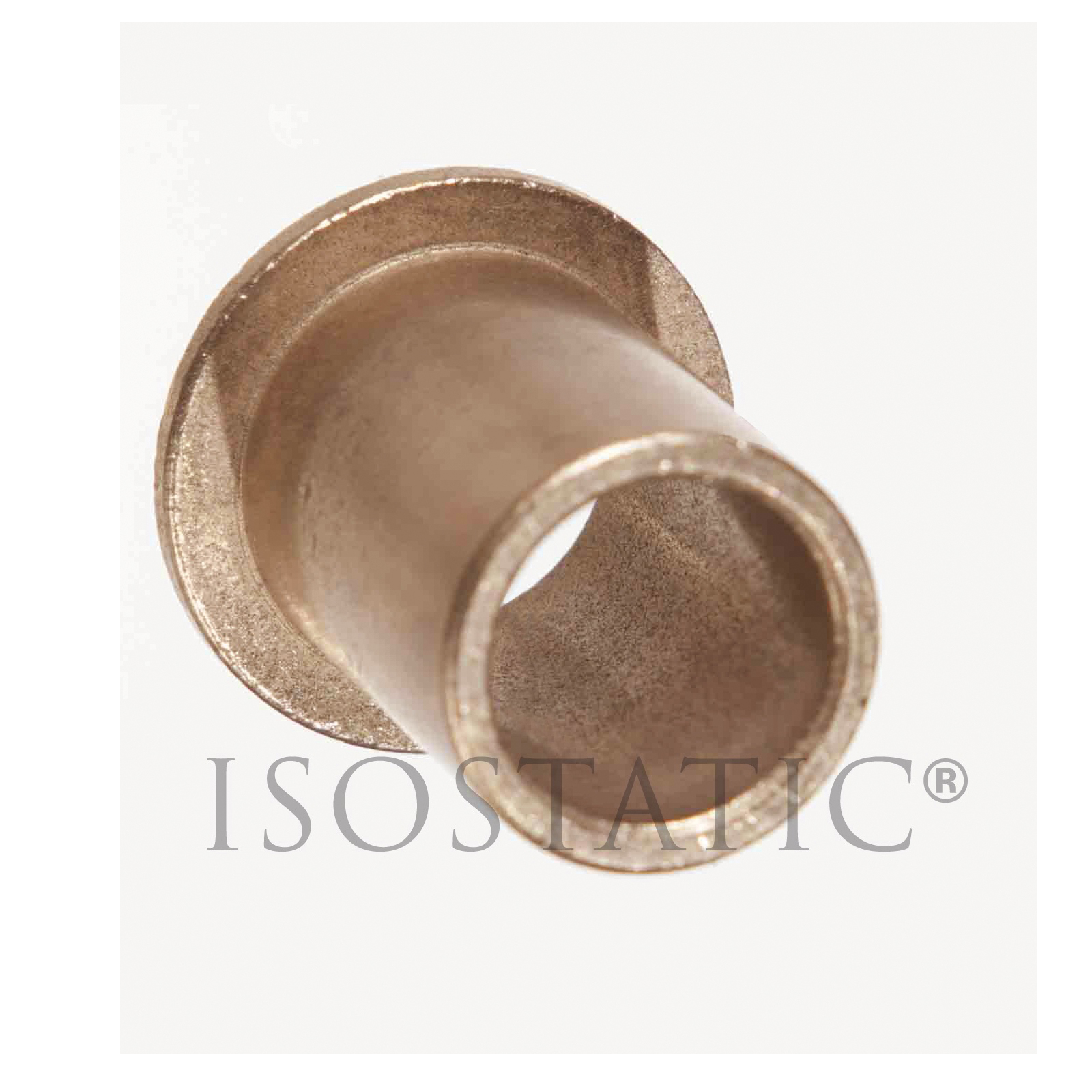

ISOSTATIC™ Oilube® 102057 Round Bore Flange Bearing, 1/2 in Dia Bore, 5/8 in OD, 5/8 in W, 7/8 in Dia Flange
- CP#:
- Item#: FF-620-7
- Mfr#: 102057
- UPC: 846802008925
- Standard stock products
- SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Vacuum impregnated with SAE 30 oil during the manufacturing process
- Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ISOSTATIC™ Oilube® Flange Bearing, Round Bore, 1/2 in Bore, 5/8 in OD, 5/8 in Width, 7/8 in Diameter Flange, 1/16 in Flange Width, 10 to 175 deg F, 2000 psi Maximum, 1200 sfpm Maximum Velocity, 50000 psi/sq-ft/min Maximum PV, SAE 841 Powdered Metal/Oil Impregnated Bronze Bearing
SPECIFICATIONS
| Bearing Material | : | SAE 841 Powdered Metal/Oil Impregnated Bronze |
| Flange Diameter | : | 7/8 in |
| Flange Width | : | 1/16 in |
| Maximum PV Rating | : | 50000 psi/sq-ft/min |
| Maximum Pressure | : | 2000 psi |
| Outside Diameter | : | 5/8 in |
| Maximum Velocity | : | 1200 sfpm |
| Width | : | 5/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/16/Isostatic_102401_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/497/Isostatic_102057_Specification_Sheet.pdf
