IPTCI Bearings UCFX 15 48
IPTCI Bearings

IPTCI Bearings UCFX 15 48

loading
IPTCI Bearings UCFX 15 48
IPTCI Bearings
Email Print

UCFX 15 48

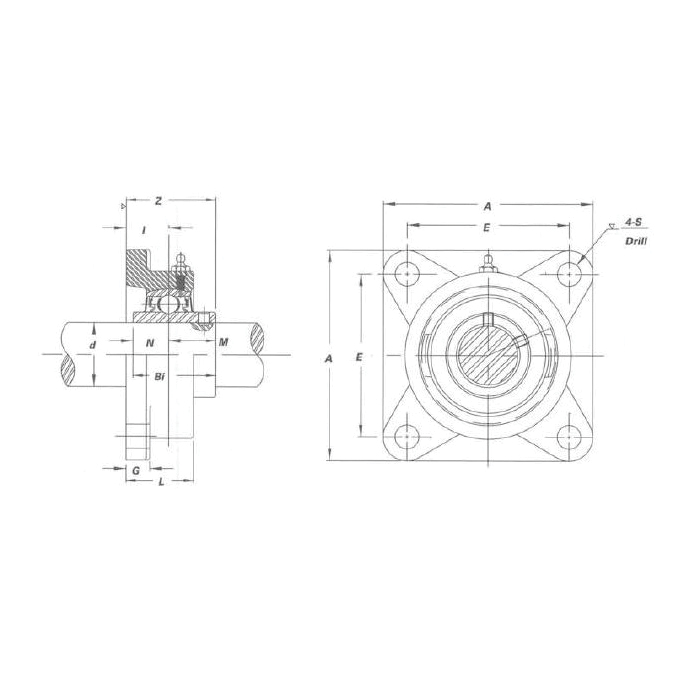

IPTCI Bearings UCFX 15 48 Standard Medium Duty Flange Block Bearing With Type-B Seal, 3 in Dia Bore, 6 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 7-3/4 in OAL/Dia

  • Item#: UCFX15-48
  • Mfr#: UCFX 15 48
  • UPC: 080067565393
    • Wide inner race bearing with greater load carrying capacity than standard duty
    • Cast iron housing
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

UCFX Series Medium Duty 4-Bolt Flange ball bearing unit features a cast iron housing and a ball bearing insert with flinger seals and set screw lock. The housing is made of cast iron for rigidity and vibration dampening, and has a solid base for mounting stability. The double-sealed, deep-groove ball bearing insert is made of through-hardened chromium steel and is appropriate for applications with moderate radial loads and light thrust or combination loads. It has a wide inner ring on both sides for increased shaft support and reduced inner-ring tilt for smooth operation. The insert bearing has a sphered outer surface that allows it to self-align within the housing & compensate for misalignments. It also has an anti-rotation pin in outer surface that prevents the bearings from spinning within the housing and ensures smooth performance. Steel-reinforced molded rubber lip seals with flingers on both sides of the bearing retain the high quality multi-purpose lubricant and deflect contaminants away from the seals. ~~ The bearing locks onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. Set screw locking is suitable for low to moderate speed applications where the shaft rotates in a single or reversing direction. The unit is equipped with a grease fitting on the housing’s outer surface for reapplying lubricant, and the insert bearing has a groove and oil hole in the outer ring to efficiently channel grease into the bearing during re-lubrication. ~~ Ball Bearing Pillow Block units are suitable for use in industrial and commercial applications including industrial machinery, conveyors, fans/blowers, agricultural equipment, construction machinery, exercise equipment, and food processing equipment, among many others.

IPTCI Bearings Flange Block Bearing, Standard Medium Duty, Series: UCFX, 3 in Bore Dia, 6 in L Bolt Center-to-Center, 4-Bolt Flange Mounting, 7-3/4 in Overall Length/Diameter, 7-3/4 in Overall Height, Set Screw Locking Device, 15970 lbf Dynamic Load

SPECIFICATIONS

Bolt Center-to-Center Length      :      6 in
Series      :      UCFX
Flange Mounting Type      :      4-Bolt
Locking Device      :      Set Screw
Load Capacity      :      15970 lbf Dynamic
Overall Height      :      7-3/4 in
Overall Length/Diameter      :      7-3/4 in
