ZL205-DRS

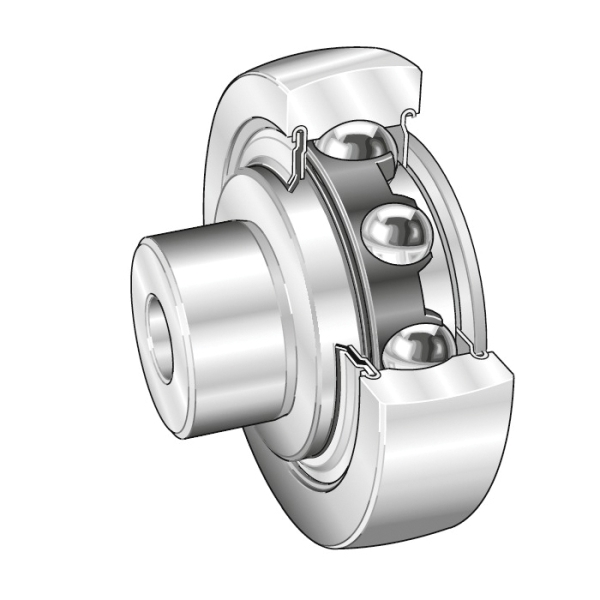

INA ZL205-DRS Crowned Stud Type Track Roller, 62 mm Dia x 15 mm W Roller, 25 mm Dia x 16 mm L Stud
- CP#:
- Item#: ZL205-DRS
- Mfr#: ZL205-DRS
- UPC: 03537317490
- ZL2 track rollers are single row
- Lip seals on stud side with axial sealing action
- Sealing shield with cover on the end face
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Stud type track rollers have outer rings with a crowned outside surface, heavy-section roller studs and ball and cage assemblies with plastic cages. The yoke type track rollers are available with and without an eccentric collar. Stud type track rollers ZL and KR must be axially clamped. The abutment surface for the nut must have sufficiently high strength and the tightening torque MA for the fixing nut must be observed. The roller stud can only transmit the permissible radial load if the correct tightening torque is applied. If the tightening torque for the nut cannot be adhered to, an interference fit is required.
INA Track Roller, Crowned Stud Type, Series: ZL2, 62 mm Roller Diameter, 15 mm Roller Width, 25 mm Stud Diameter, 16 mm Stud Length, M10 Thread, 19 mm Thread Length, 13300 N Dynamic/7100 N Static Load, 5500 rpm Maximum, Standard Stud, Single Sealed Closure
SPECIFICATIONS
| Series | : | ZL2 |
| Load Capacity | : | 13300 N Dynamic/7100 N Static |
| Maximum Speed | : | 5500 rpm |
| Roller Diameter | : | 62 mm |
| Roller Width | : | 15 mm |
| Stud Diameter | : | 25 mm |
| Stud Length | : | 16 mm |
| Stud Type | : | Standard |
| Thread Length | : | 19 mm |
| Thread Size | : | M10 |
DOCUMENTS
-
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_NIPA1_Warranty.pdf
