ZKLN3062-2RS-XL

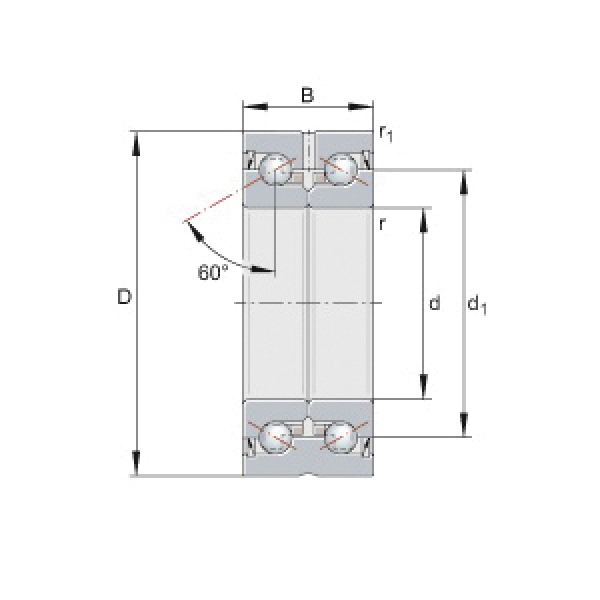

INA ZKLN3062-2RS-XL ZKLN..-2RS Axial Angular Contact Ball Bearing, 30 mm Dia Bore, 62 mm OD, 2 Rows, 28 mm W, 60 deg, 32000 N Dynamic/64000 N Static/3750 N Fatigue Load
- CP#:
- Item#: ZKLN3062-2RS
- Mfr#: ZKLN3062-2RS-XL
- UPC: 03537314112
- Double direction
- Lip seals on both sides
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
INA Axial Angular Contact Ball Bearing, Series: ZKLN..-2RS, 30 mm Bore Dia, 62 mm Outside Dia, 2 Rows, 28 mm W, 60 deg Contact, Sealed Closure, 32000 N Dynamic/64000 N Static/3750 N Fatigue, Plastic Cage, 5000 rpm Limiting for Grease/2200 rpm Thermally Safe Operating Maximum, -30 to 120 deg C
SPECIFICATIONS
| Series | : | ZKLN..-2RS |
| Contact Angle | : | 60 deg |
| Load Capacity | : | 32000 N Dynamic/64000 N Static/3750 N Fatigue |
| Maximum Speed | : | 5000 rpm Limiting for Grease/2200 rpm Thermally Safe Operating |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 2 |
| Width | : | 28 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/INA_ZKLN3062_2RS_L_Specification_Sheet.pdf
