INA ZKLN2052-2RS-XL
INA

INA ZKLN2052-2RS-XL

loading
INA
Email Print

ZKLN2052-2RS-XL

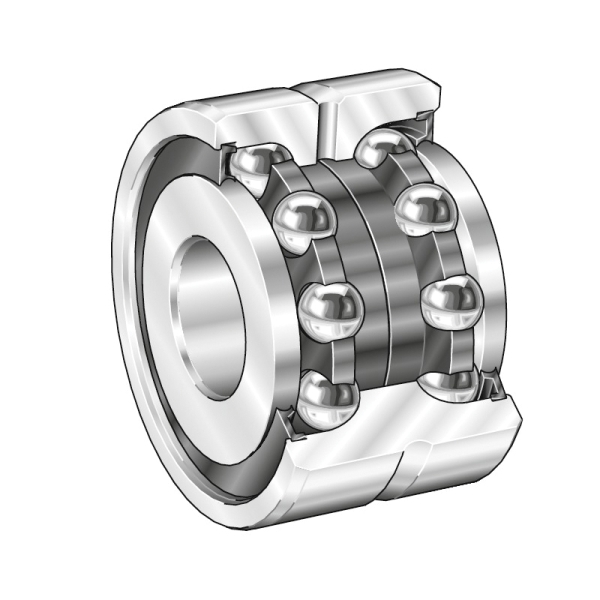

INA ZKLN2052-2RS-XL ZKLN-2RS Axial Angular Contact Ball Bearing, 20 mm Dia Bore, 52 mm OD, 28 mm W, 60 deg, 47000 N Load

  • Item#: ZKLN2052-2RS
  • Mfr#: ZKLN2052-2RS-XL
  • UPC: 03537314110
  • Double direction
  • X-life design
  • Standard axial contact lip seal
  • 28500 N dynamic/47000 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Double-direction axial angular contact ball bearings are precision bearings without self-retention and with restricted tolerances to class SP. They comprise solid-shaft locating washers, spacer rings, housing locating washers and ball and cage assemblies with solid brass cages. The bearing parts are matched to each other and can be fitted separately, but must not be interchanged with parts from bearings of the same size.

INA Axial Angular Contact Ball Bearing, Series: ZKLN-2RS, 20 mm Bore, 52 mm OD, 28 mm Width, 60 deg Contact Angle, Double Seal Closure, 47000 N Load, Plastic Cage, 6600 rpm Maximum

SPECIFICATIONS

Series      :      ZKLN-2RS
Contact Angle      :      60 deg
Load Capacity      :      47000 N
Maximum Speed      :      6600 rpm
Outside Diameter      :      52 mm
Width      :      28 mm
